Blauberg Silenced Iso-Mix 150 Inline Fan | 150mm Mixed-Flow Duct Fan | Up to 550 m³/h

Blauberg Iso-Mix 150 Inline Fan | 150mm Mixed-Flow Duct Fan | Up to 550 m³/h | Sound-Insulated Steel Casing | Ultra-Quiet | IPX4 Rated AC Motor

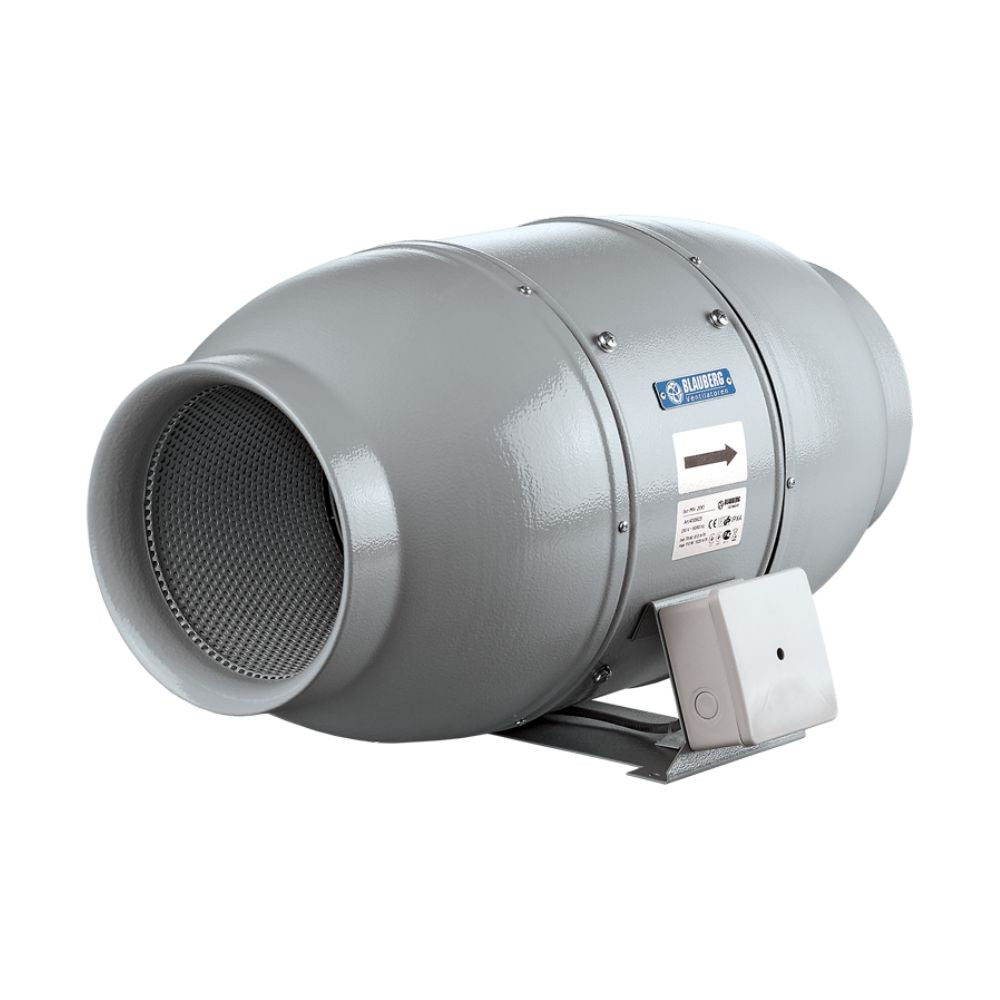

The Blauberg Iso-Mix 150 is a high-performance mixed-flow inline fan specifically designed for silent airflow in sound-sensitive environments. Housed in a sound-insulated, coated steel casing, it delivers up to 550 m³/h of airflow with whisper-quiet performance—just 38 dB(A) at 3 meters on high speed.

This fan is equipped with a 2-speed AC motor, selectable via a speed switch, and comes ready to install with a mains cable and plug. Perfect for residential HVAC, grow tents, audio studios, or any space where airflow and silence must coexist.

View Data Sheet Here.

✅ Key Features:

• Silent Operation: Only 32–38 dB(A) at 3m thanks to an insulated steel housing.

• Compact Power: Delivers 410–550 m³/h with low energy use (45W–52W).

• AC Motor with Speed Switch: Choose between two preset speeds—1985 or 2640 RPM.

• Plug & Play: Includes mains plug for easy installation.

• Durable Steel Construction: Powder-coated soundproof steel casing for superior longevity and noise dampening.

• All-Position Mounting: Install vertically or horizontally—ideal for tight ducting paths.

• IP Rated for Protection: IPX4 casing and IP44 motor protection for safe use in humid conditions.

📏 Technical Specifications:

• Duct Size: 150mm

• Max Airflow: 550 m³/h

• Power: 45W (low) / 52W (high)

• Sound Level @3m: 32 / 38 dB(A)

• Speed: 1985 / 2640 RPM

• Current: 0.2A / 0.23A

• Weight: 6.1kg

• Voltage: 230V

• Frequency: 50/60Hz

• Temp Range: 1°C to 60°C (ambient up to 40°C)

• Ingress Protection: IPX4 (casing), IP44 (motor)

🛠 Ideal Applications:

• Grow tents & hydroponic systems

• Home HVAC systems

• Studios, libraries & bedrooms

• Ventilation in apartments or sound-sensitive commercial spaces

🌬 Ultra-Quiet Power in a Compact Design

The Iso-Mix 150 is the perfect solution for environments where quiet ventilation is non-negotiable. With steel-clad sound insulation and solid airflow performance, it’s an exceptional fan for both professionals and DIYers.
