1500W Electric Tile Saw Cutter with 300mm (12") Blade | 920mm Cutting Length | Side Extension Table

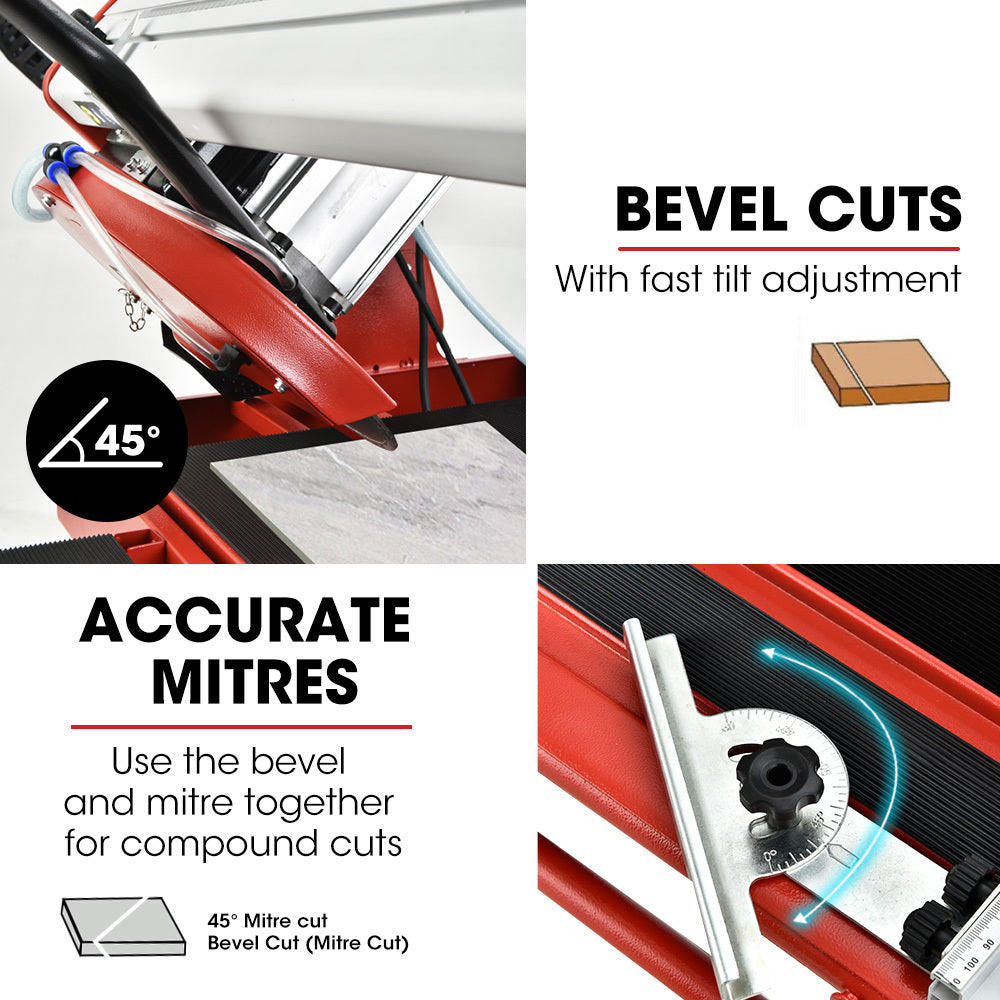

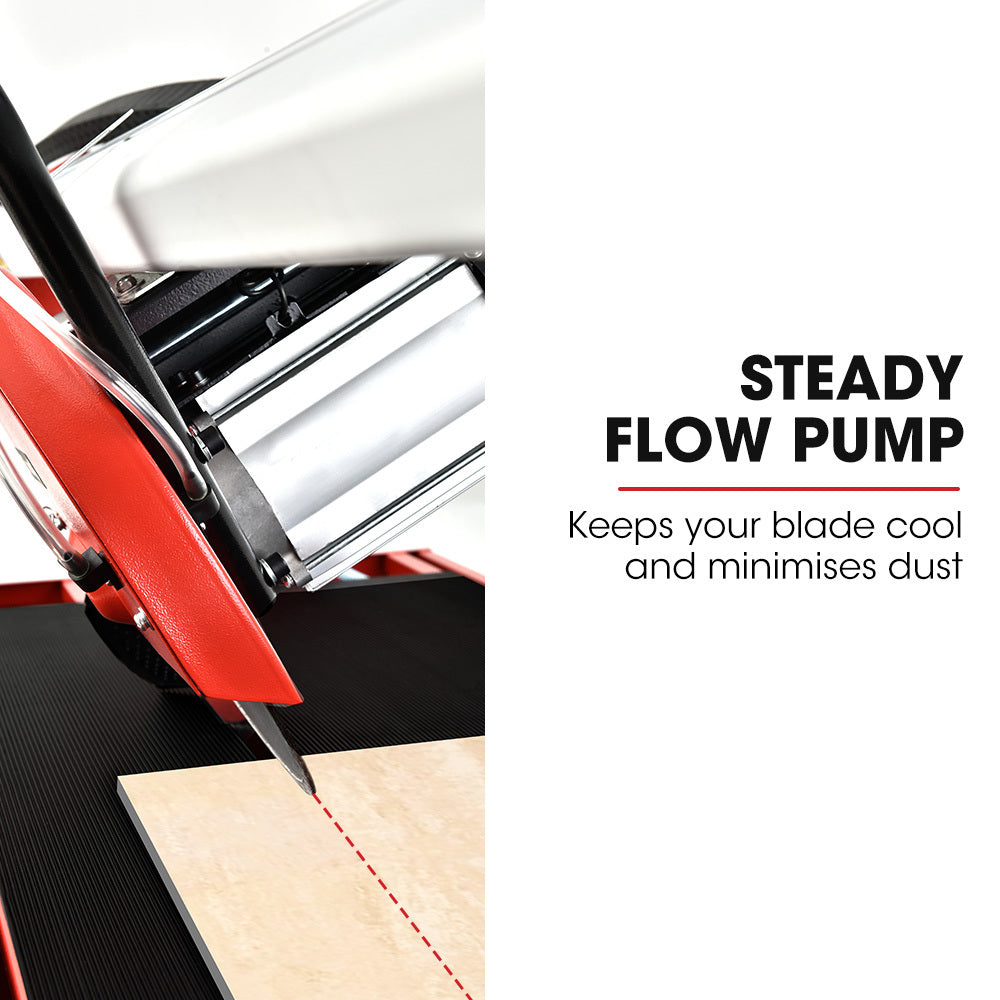

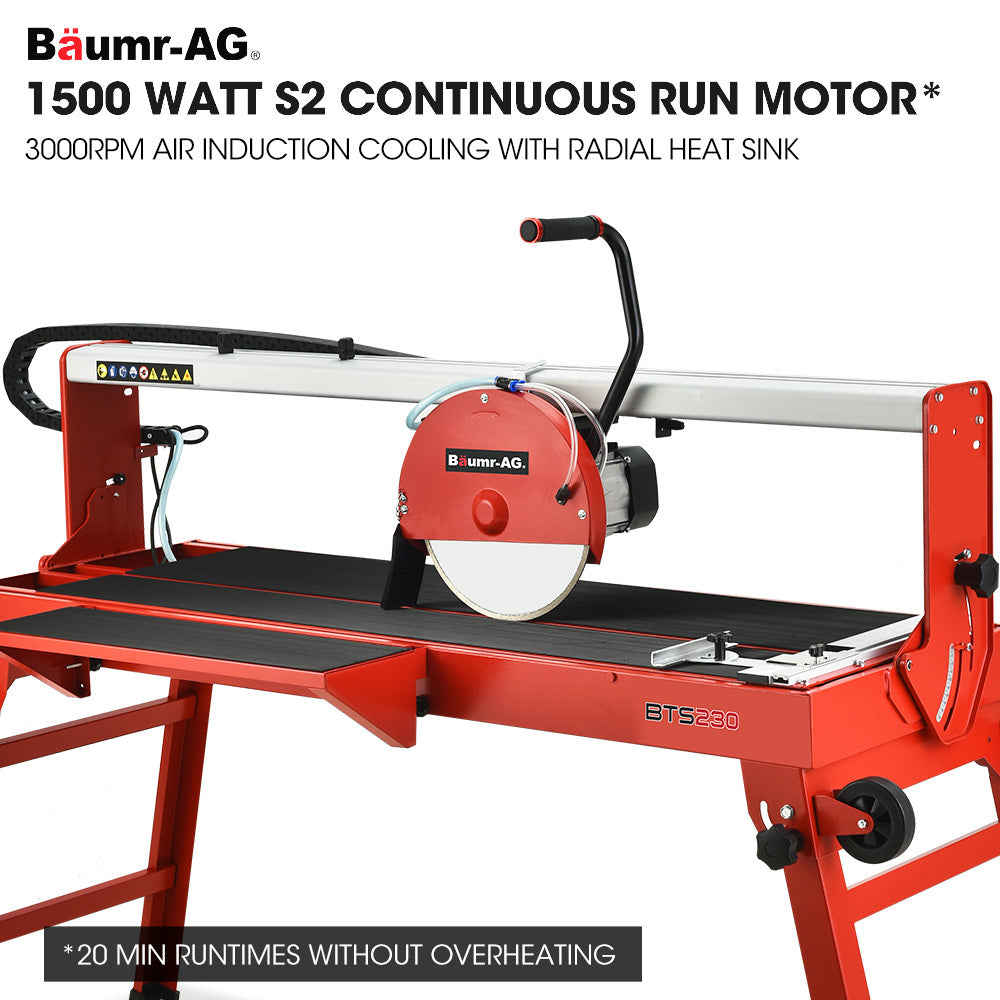

The Baumr-AG BTS230 is a rugged, full-featured commercial-grade tile saw that allows you to cut large format tiles with minimal effort and better results. At the heart of the BTS230 is a powerful 1500W motor that is mounted on a quad ball-bearing carriage for smooth and accurate cutting. The rail easily pivots for bevel cuts, and the rip/mitre cutting guide enables fast repeatable cuts. The wet-cutting system is fed by a dependable high-volume pump in the undertray reservoir, and features a shielded water pipe to withstand those typical knocks.

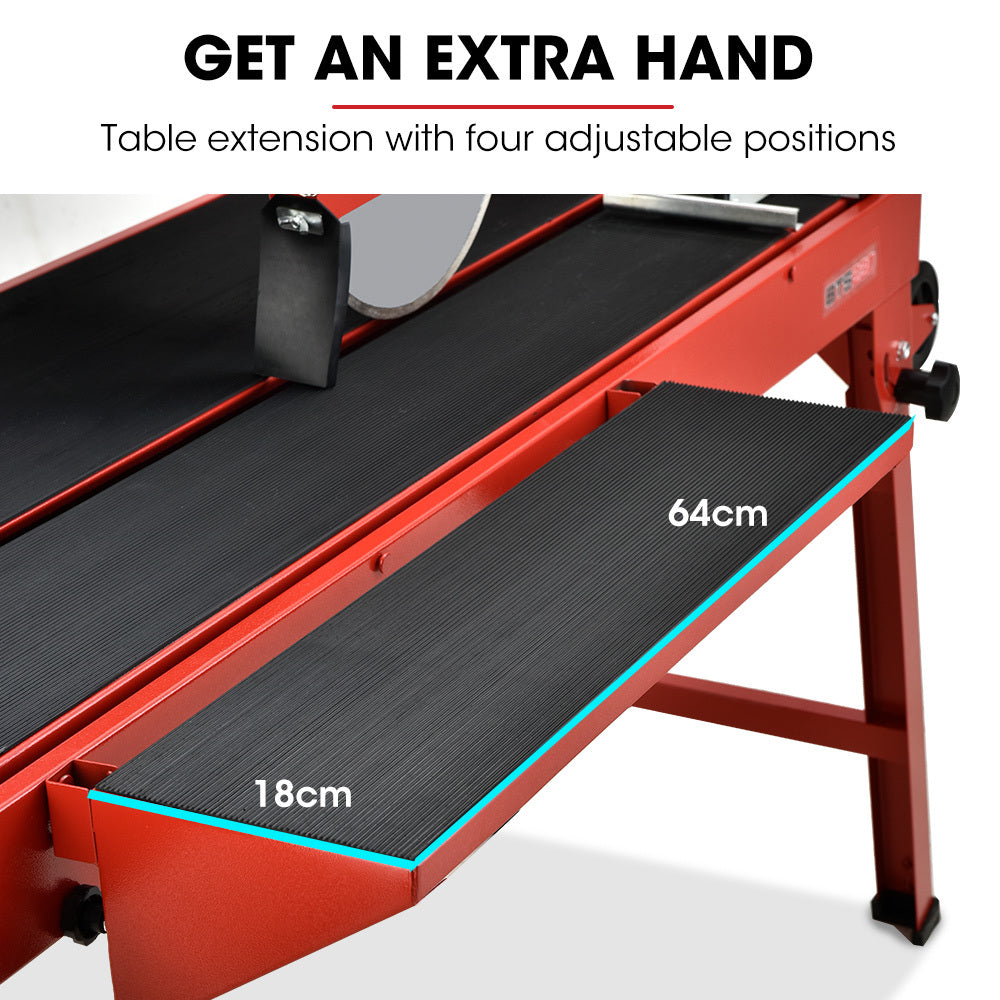

The Baumr-AG Tile Cutter has a massive deck that can accommodate all large format tiles sizes. You can rip cut porcelain and ceramic tiles up to 900mm long, and thanks to the big side extension table you can perform mitre cuts to tiles as big as 600 x 600mm! With serious power on tap and a cutting depth of 66mm you can also slice through thick pavers.

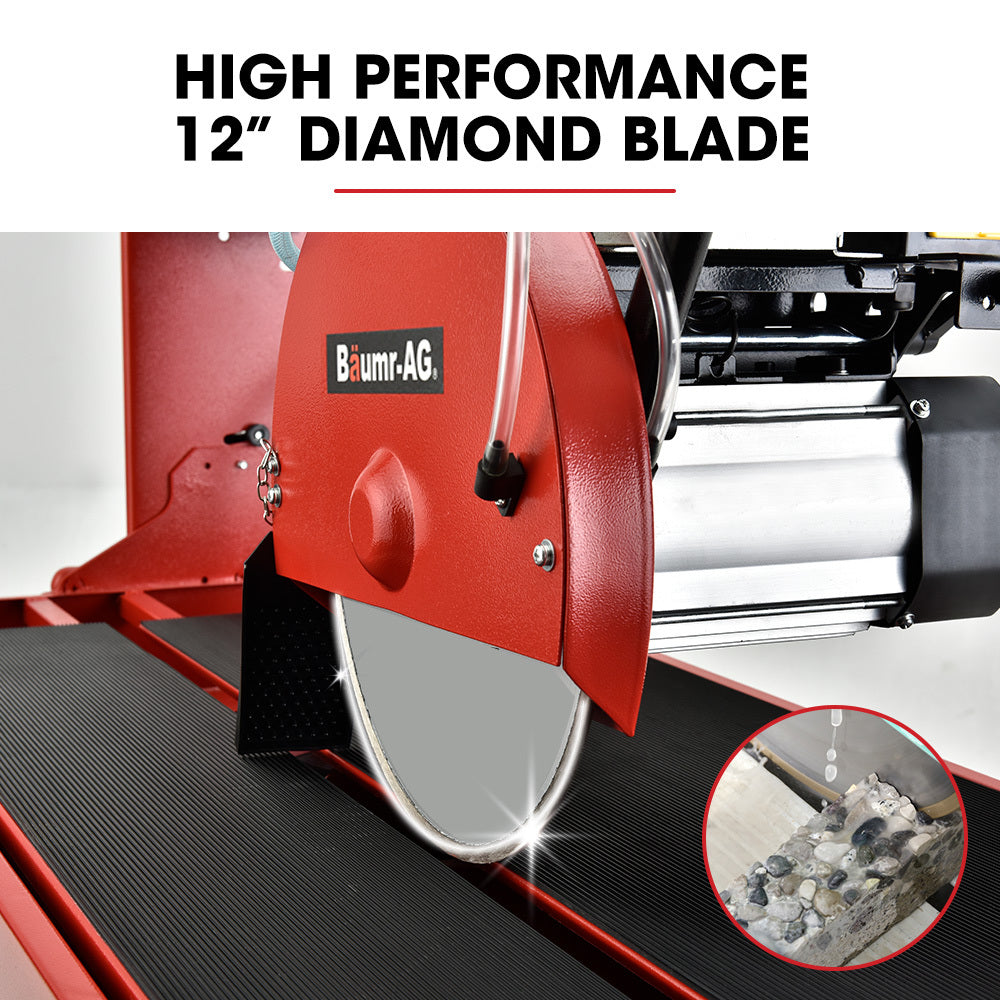

The bridge of the BTS230 has a measurement guide and lateral stops which facilitate multiple quick and accurate cuts of exact length. A high-performance aftermarket blade will provide optimal cutting results and enable working with dense materials like marble and granite.

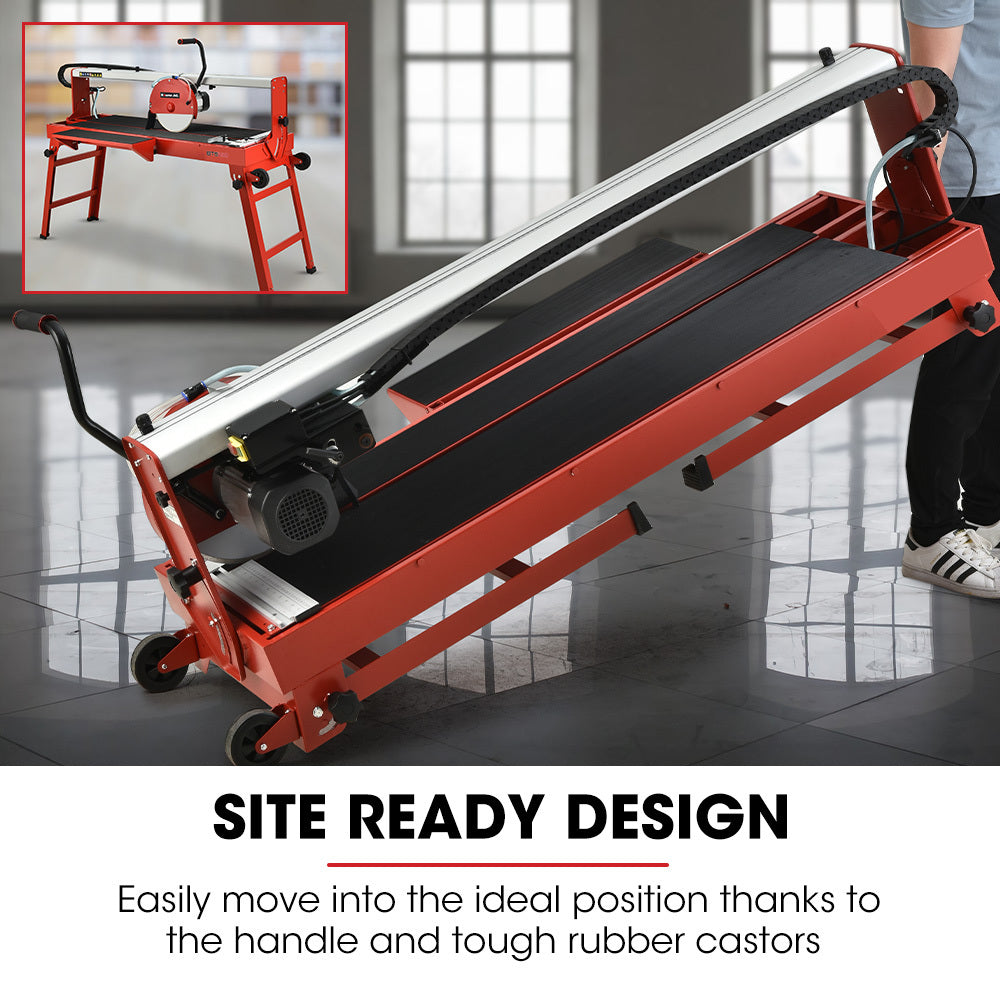

And finally, with folding legs, castor wheels and a blade head that can be locked into position it is easy to transport to the site! With an impressive combination of power, reliability and so many features, this great value tile saw is the ideal choice for contractors, or very serious DIYers.

Specification


  • Brand: Baumr-AG
  • Model: BTS230
  • Motor: 1500W Copper
  • Blade: 300mm (12') Diamond
  • Motor Speed: 3000 RPM
  • Mitre Range: +/- 45°
  • Bevel Range: + 45°
  • Max Cutting Depth: 66mm @90°, 53mm @ 45°
  • Max. Cut Length: 920mm
  • Deck Size: 1250 x 460mm
  • Extension Table: 640 x 180mm
  • Input Voltage: 240V AC 50Hz
  • Power Plug: Australian Standard
  • Note: Some Assembly Required. Not suitable for cutting Travertine

  • Please Note: Performing angled bevel cuts can be arduous, if you choose to perform such cuts please ensure that you are qualified to do so before operating the machine. Please also be aware of any adjustable parts of the machine that may be in the cutting line when performing an angled cut that is otherwise not in the way when in normal operation. It is recommended to guide the circular saw blade along the full range of the cutting table before activating its power to ensure no object is obstructing an angled cut.​

  • Please Note: The supplied blade may not be suitable for all applications, refer to a tile supplier for the recommended blade.

IN THE BOX

  • 1 x Baumr-AG BTS230 Wet Tile Saw
  • 1 x Side Extension Table
  • Note: User Manual is accessible online

SIZE & WEIGHT

  • Product Dimensions (W x L x H): 51 x 144 x 112cm
  • Product Weight: 60kg
  • Carton Dimensions (W x L x H): 62 x 141 x 65cm
  • Carton Weight: 66kg

SKU: TILSAWBMRA230
