Mini Smart Indoor Grow Tent Kit | 2x2 ft | 100W Full Spectrum LED

Product Introduction

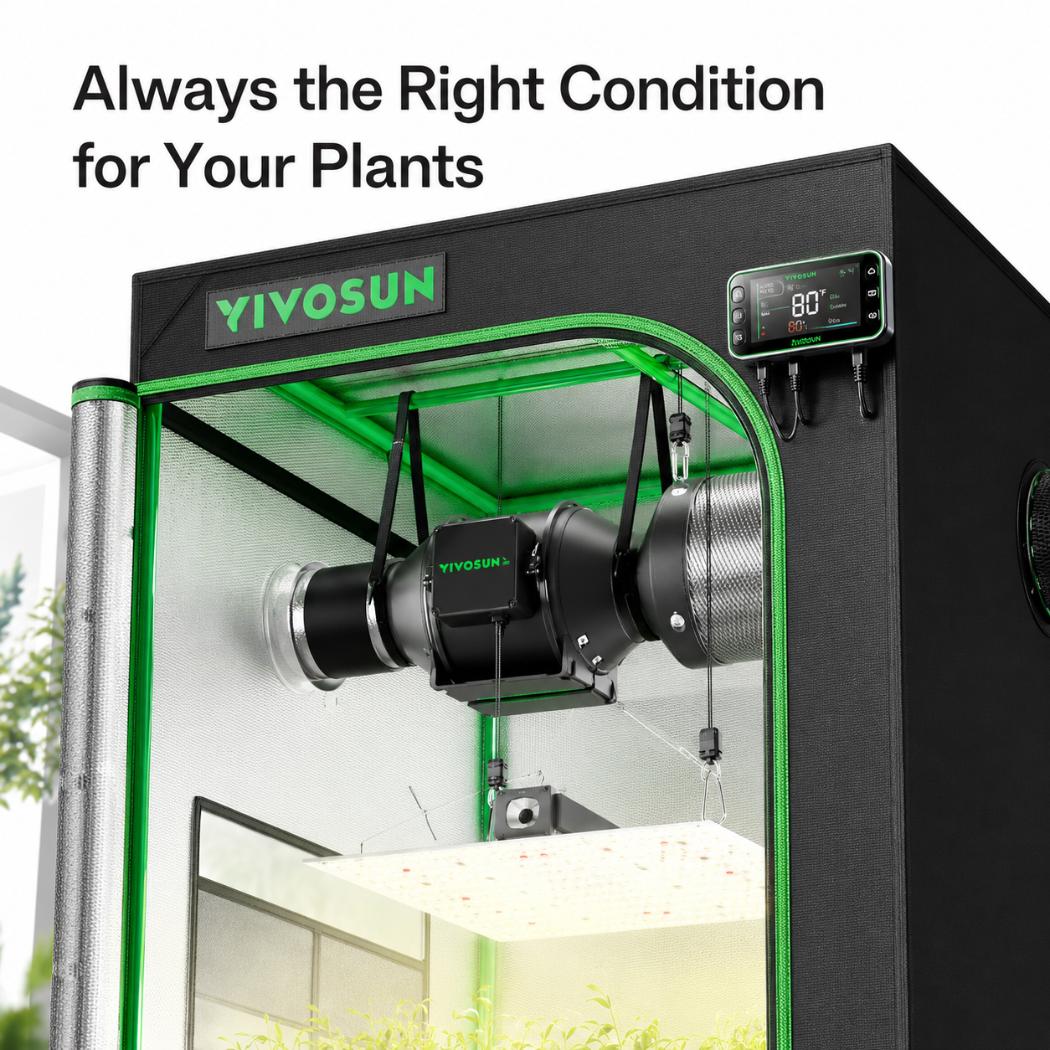

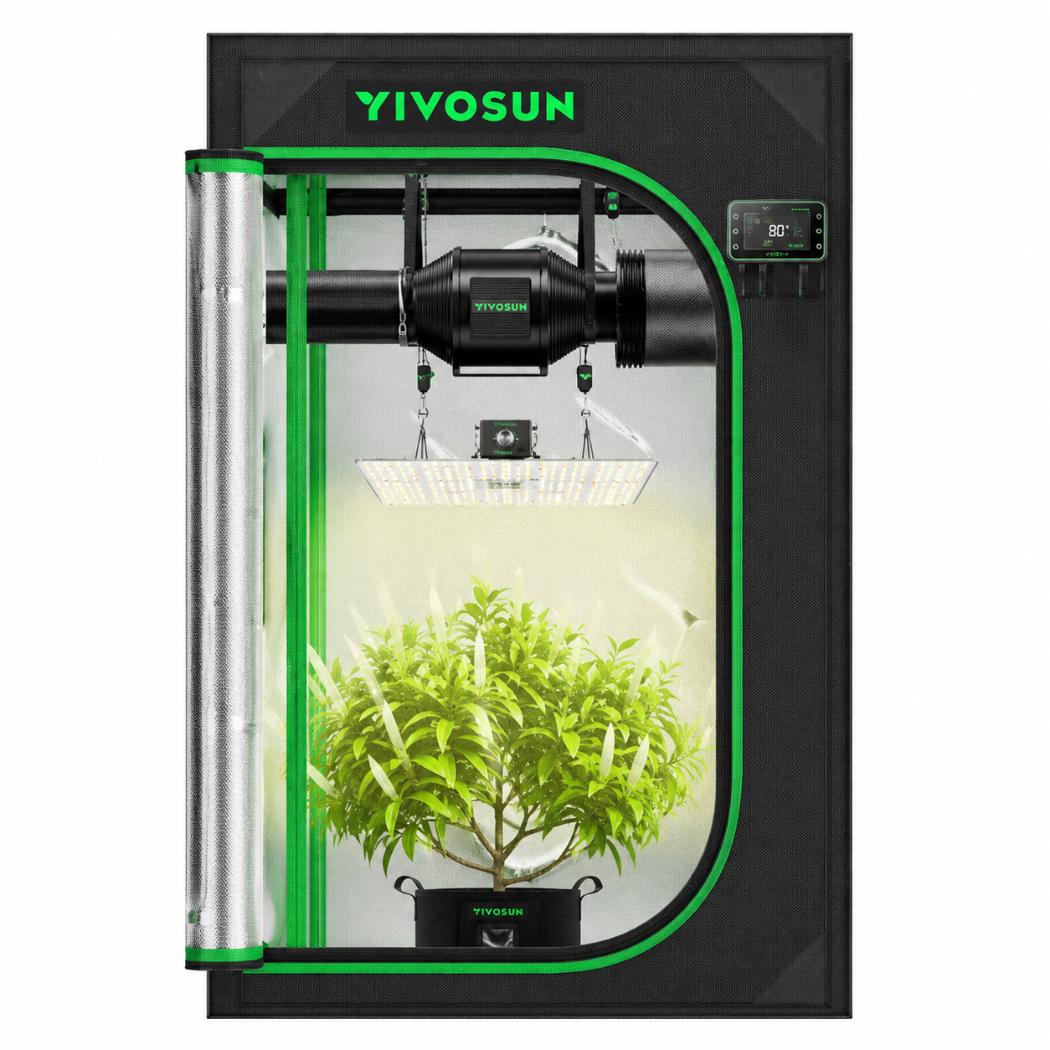

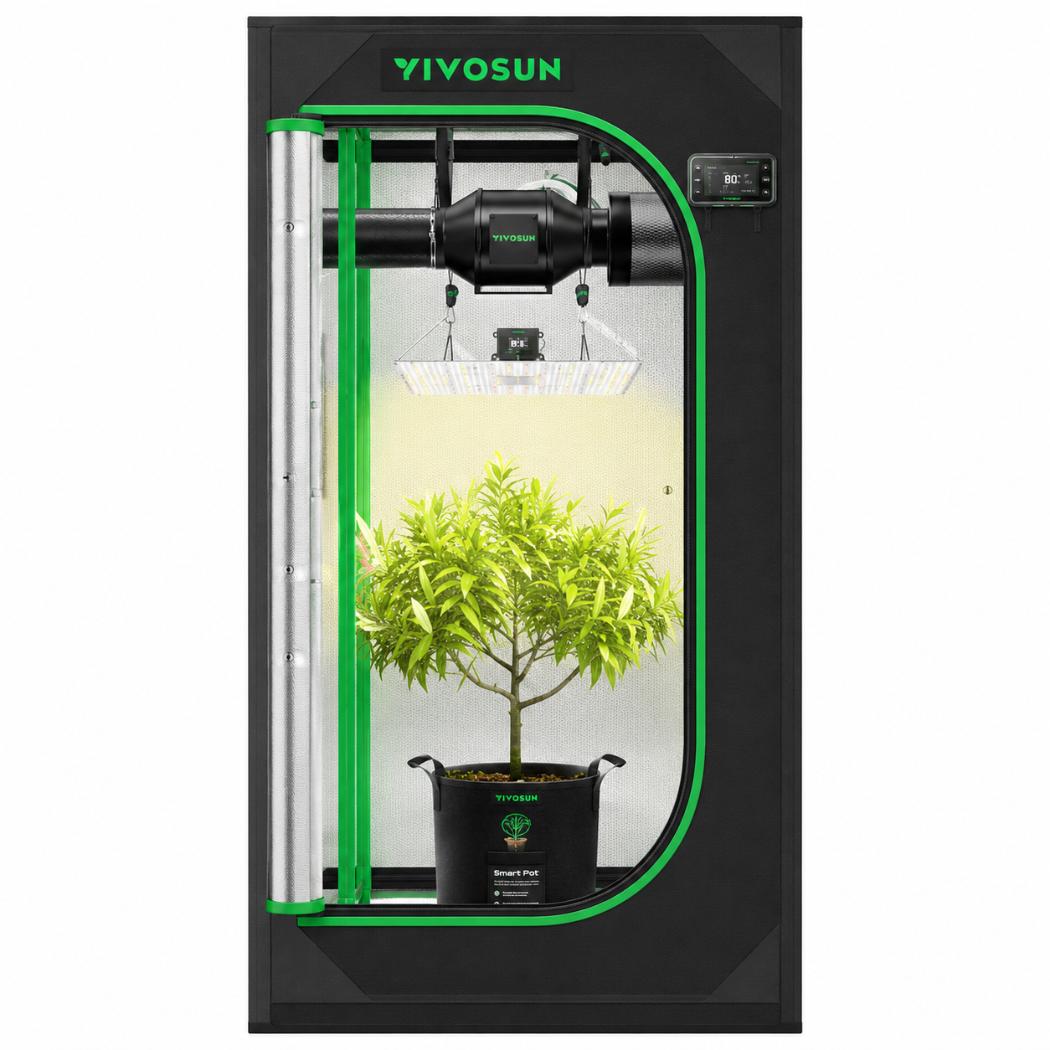

The VIVOSUN 2x2 Smart Grow Tent Kit combines full-spectrum LED lighting, smart ventilation, carbon filtration and environmental monitoring in one compact indoor grow system. Built around an upgraded 24 x 24 x 48 inch grow tent, the package includes a 100W LumaLight LED grow light, GrowHub E42A+ smart controller, 4-inch AeroZesh G4 inline fan, carbon filter, ducting and a practical range of accessories for setting up an organised indoor growing space.

The upgraded S224 tent uses 1680D lightproof Oxford fabric with a hexagon-pattern reflective Mylar interior. Its compact 2 x 2 ft footprint makes it particularly useful where floor space is limited, while the included LumaLight 100W is designed for 2 x 2 ft coverage, matching the tent footprint.

At the centre of the system is the GrowHub E42A+, which brings compatible lighting and ventilation equipment into one smart-control ecosystem. Through WiFi and the VIVOSUN App, growers can remotely monitor environmental conditions and manage compatible equipment while keeping track of temperature, humidity and VPD.

Smart GrowHub Control

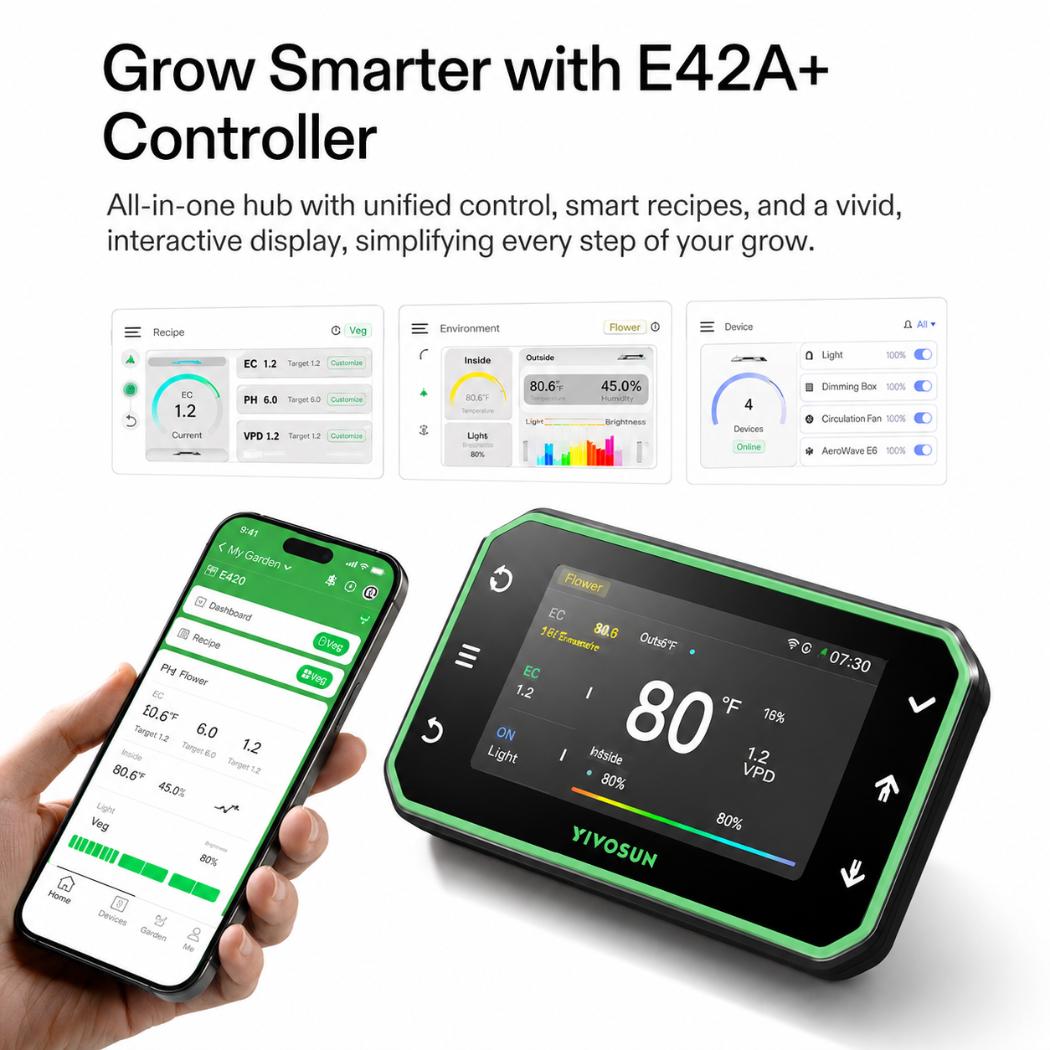

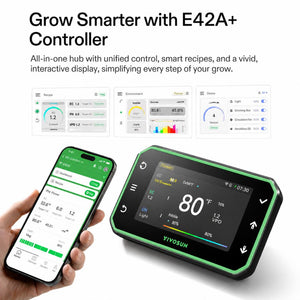

The included VIVOSUN GrowHub E42A+ Smart Controller provides a central interface for monitoring the grow environment and managing compatible Smart Grow System equipment.

The controller uses 2.4 GHz WiFi and works with the VIVOSUN App, allowing remote monitoring and control from a compatible smartphone. Its dual temperature and relative-humidity sensors track conditions inside and outside the grow space, while the controller also displays VPD – Vapour Pressure Deficit.

When connected to compatible grow equipment, the E42A+ can control lighting intensity and operating periods as well as duct-fan operation. Smart Auto modes and VIVOSUN Grow Recipes provide additional options for automating equipment according to grow schedules and environmental conditions.

GrowHub E42A+ Features

• 2.4 GHz WiFi connectivity
• VIVOSUN App compatibility
• Remote monitoring and control
• Internal temperature monitoring
• Relative humidity monitoring
• VPD monitoring
• External temperature and humidity sensing
• Grow light intensity control
• Lighting schedules and cycles
• Inline duct fan control
• Timers and automated operation
• Smart Auto mode
• VIVOSUN Grow Recipe support
• High/low temperature, humidity and VPD alerts
• Interactive colour display
• 3 metre temperature/humidity sensor probe

The E42A+ is designed to monitor and control compatible grow lights, circulation fans and duct fans from one controller rather than requiring separate control systems.

LumaLight 100W Full-Spectrum LED Grow Light

Lighting is provided by the VIVOSUN LumaLight 100W LED Grow Light, a compact full-spectrum fixture designed for 2 x 2 ft coverage. Its footprint is appropriately matched to this 24 x 24 inch grow tent.

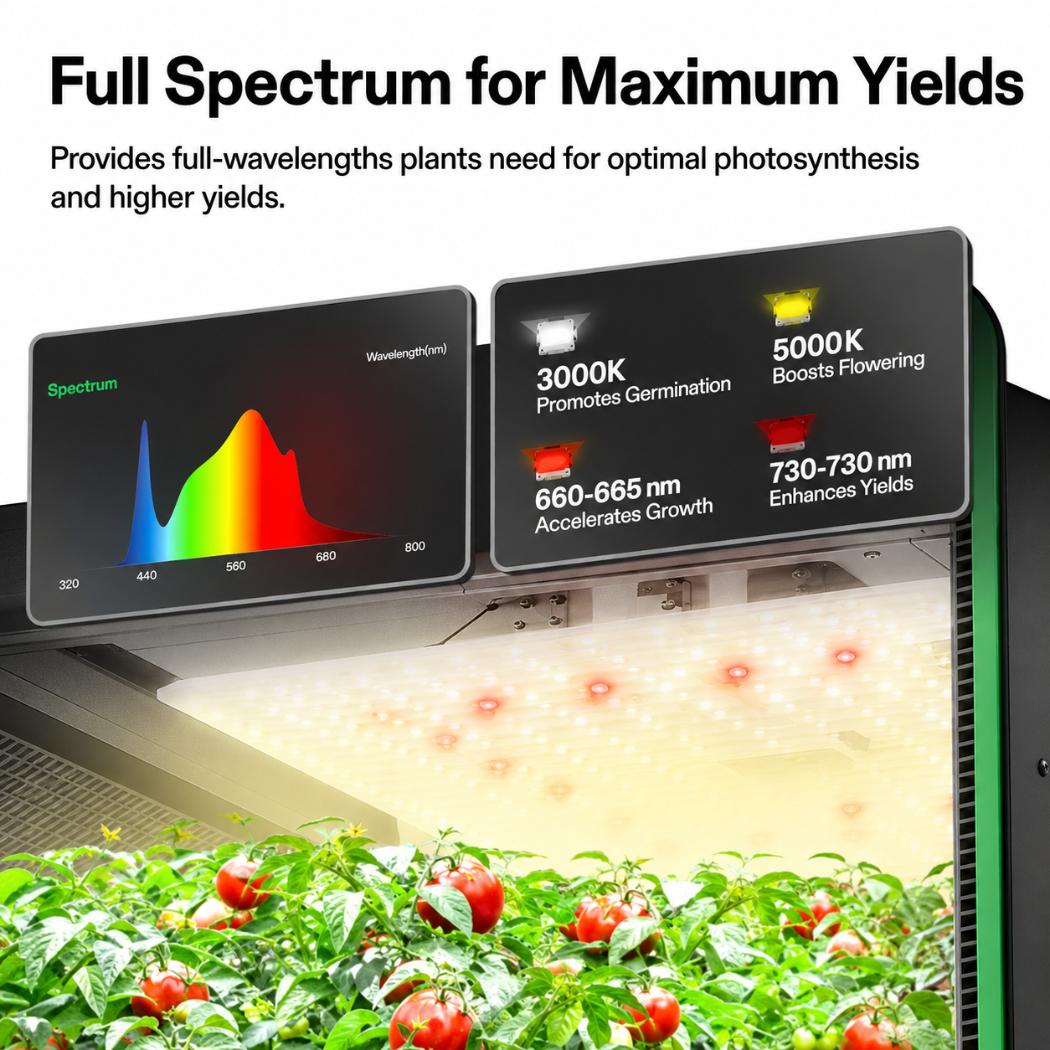

For this exact smart grow tent kit, VIVOSUN lists a full-spectrum combination of 3000K and 5000K white light with 660nm red and 730nm far-red wavelengths, providing broad-spectrum illumination for different stages of an indoor growing cycle.

VIVOSUN rates the LumaLight 100W at 521 µmol/m²/s PPFD measured at 12 inches. Manual and GrowHub dimming provides 25%, 50%, 75% and 100% output settings plus OFF, while the VIVOSUN App allows adjustment from 25% to 100%, plus OFF.

The fixture carries an IP65 dust and water protection rating, and VIVOSUN specifies a lifespan of approximately 36,000 hours.

LumaLight 100W Specifications

Model: VIVOSUN LumaLight 100W
Power: 100W
Dimensions: 12 x 12 x 2.4 in / approx. 30 x 30 x 6.1 cm
Recommended Coverage: 2 x 2 ft
Spectrum: Full spectrum
Kit-Listed Spectrum: 3000K, 5000K, 660nm and 730nm
PPFD: 521 µmol/m²/s at 12 in
Manual/GrowHub Dimming: 25% / 50% / 75% / 100% / OFF
VIVOSUN App Dimming: 25–100% / OFF
Input: 120–240VAC, 50–60Hz
Protection Rating: IP65
Rated Lifespan: 36,000 hours

Heavy-Duty 2x2 Grow Tent

The kit uses the upgraded VIVOSUN S224 Standard Grow Tent, measuring 24 x 24 x 48 inches. This converts to approximately 61 x 61 x 122 cm, while VIVOSUN lists the rounded metric dimensions as 60 x 60 x 120 cm.

The tent is constructed from 1680D tear-resistant Oxford fabric with a highly reflective Mylar/aluminium interior. VIVOSUN's upgraded hexagon-pattern reflective surface is designed to diffuse reflected light throughout the grow space, while the reinforced fabric construction helps create an enclosed, light-controlled environment.

A steel frame with 16 mm poles supports installed equipment. The S224 provides two 4-inch and three 6-inch duct openings, allowing ventilation and other environmental-control hardware to be routed through the tent. It also includes a front viewing window, lower ventilation areas, equipment/cable openings and a waterproof floor tray for easier day-to-day use.

Grow Tent Details

Model: VIVOSUN S224 / VST-GTS224
Tent Size: 2 x 2 ft
Dimensions: 24 x 24 x 48 in
Approx. Converted Dimensions: 61 x 61 x 122 cm
VIVOSUN Metric Size: 60 x 60 x 120 cm
Canvas Density: 1680D
Outer Material: Oxford fabric
Interior: Highly reflective Mylar/aluminium layer
Viewing Window: 9.8 x 9.8 in / approx. 25 x 25 cm
Duct Openings: 2 x 4" and 3 x 6"
Door: Front door
Frame: Steel
Pole Thickness: 16 mm
Specified Load Capacity: 120 lb / approx. 54 kg

4-Inch AeroZesh G4 Ventilation System

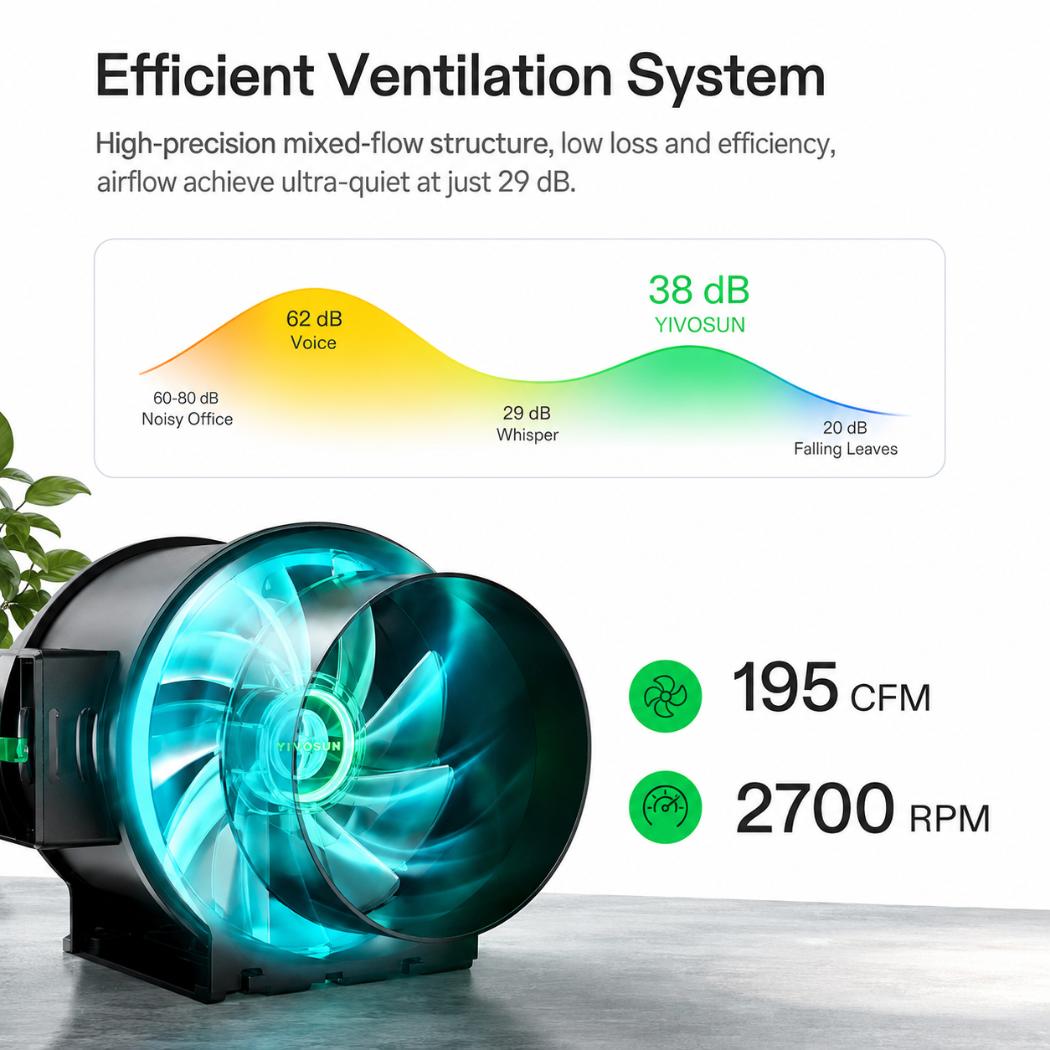

Ventilation is handled by the VIVOSUN AeroZesh G4 4-inch inline duct fan, a PWM-controlled EC fan designed for adjustable grow tent air extraction.

The G4 delivers a maximum airflow of 195 CFM. Its mixed-flow design is intended to provide efficient air movement through the tent's filtration and ducting system, while compatibility with GrowHub allows the fan to be integrated with the smart environmental-control setup.

VIVOSUN specifies the G4 at 20W, with a maximum fan speed of 2600 RPM and an IP44 ingress-protection rating. When used with the E42A+, airflow can be incorporated into automated environmental management rather than relying only on manual adjustment.

The kit includes a 4-inch carbon filter, 4-inch ducting, clamps and 4-inch prefilter. The matching G4 filtration configuration uses 1200+ IAV carbon filtration, with 8 ft / 2.44 m ducting, creating a complete extraction path for air and helping reduce unwanted airborne odours.

Ventilation Specifications

Inline Fan: VIVOSUN AeroZesh G4
Fan Size: 4 in
Maximum Airflow: 195 CFM
Motor Type: PWM-controlled EC motor
Maximum Speed: 2600 RPM
Power: 20W
Ingress Protection: IP44
Smart Control: GrowHub E42A+ / VIVOSUN App compatible
Carbon Filter: 4 in
Carbon Rating: 1200+ IAV
Ducting: 4 in
Ducting Length: 8 ft / 2.44 m
Prefilter: 4 in

What's Included?

According to VIVOSUN's current listing for this exact 2x2 Smart Grow Tent Kit, the package includes:

• VIVOSUN 24" x 24" x 48" upgraded Standard Grow Tent
• VIVOSUN LumaLight 100W LED Grow Light
• VIVOSUN AeroZesh G4 4" Inline Fan
• VIVOSUN GrowHub E42A+ Smart Controller
• 4" carbon filter
• 4" ducting
• Ducting clamps
• 4" prefilter
• 5-gallon grow bags
• Trellis net
• Vent covers
• Pruning shears
• Twist tie
• Aluminium ducting tape
• Rope hangers
• Hooks

Key Specifications

The exact kit components are confirmed on VIVOSUN's current 2x2 listing, while the detailed light, tent, controller and ventilation specifications are supported by VIVOSUN's current individual product documentation.

Complete Smart Indoor Grow System

The VIVOSUN 2x2 Smart Grow Tent Kit is suited to indoor gardeners who want a compact grow space with lighting, extraction, filtration and smart environmental control already matched together. The 100W LumaLight is designed for the 2 x 2 ft footprint, while the 195 CFM AeroZesh G4 provides active ventilation for the enclosed tent.

GrowHub integration helps simplify everyday management by bringing compatible lighting and ventilation functions into the same control system. Light intensity and schedules can be managed alongside fan operation, while temperature, humidity and VPD readings provide useful information about conditions inside the tent. WiFi connectivity and the VIVOSUN App also allow compatible equipment to be monitored and adjusted remotely.

With its 1680D reflective grow tent, 100W full-spectrum LED grow light, 4-inch AeroZesh G4 ventilation, carbon filtration and WiFi-enabled GrowHub E42A+ controller, this compact 2x2 indoor grow system provides an organised alternative to sourcing and matching the main components separately.
