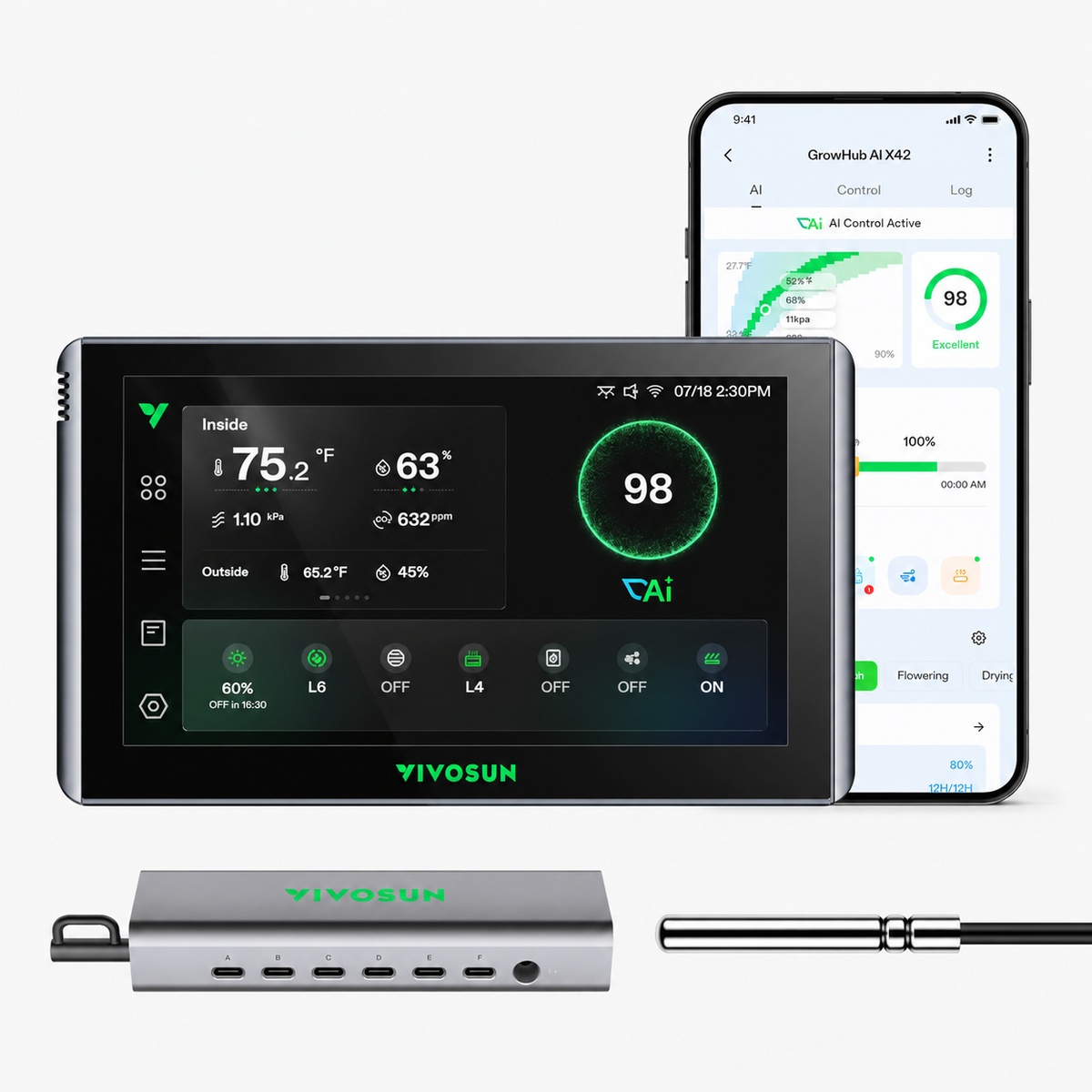

VIVOSUN GrowHub X42 AI Controller | 7-Inch Touchscreen, VPD Climate Control & App Monitoring

Product Introduction

TheVIVOSUN GrowHub X42 AI Controller is an all-in-one smart grow automation system designed to centralise lighting, ventilation, circulation and compatible environmental-control equipment inside indoor grow tents and hydroponic growing spaces.

Built around a large7-inch colour touchscreen with 1024 x 600 resolution, the X42 provides real-time environmental information, device status, control settings and detailed grow logs from a single interface. The system supports up to6 wired device connections, expandable with compatible splitters, along with up to10 wireless device connections.

The X42 combines temperature and humidity sensing withVPD-based environmental management and VIVOSUN's AI climate-control system. When used with compatible grow equipment, it can automatically adjust lighting, duct fans, circulation fans and climate-control devices to help maintain a more stable growing environment.

Smart GrowHub AI Control

TheGrowHub X42 is designed as the central control point for compatible VIVOSUN Smart Grow System equipment.

Its AI control system analyses real-time environmental readings and responds by adjusting connected devices according to selected climate targets. Growers can monitor and manage temperature, relative humidity and VPD while coordinating compatible lighting, ventilation and climate equipment from one system.

Three dedicated AI strategies allow the controller's behaviour to be matched to different priorities.

AI Climate Strategies

• Eco Mode – designed to balance environmental management with lower energy consumption
• Standard Mode – designed to maintain consistent environmental targets
• Performance Mode – designed for faster response to environmental changes

The X42 also generates visual environmental scores and records detailed environmental, device and AI-operation logs, helping growers understand how conditions change over time.

Smart Control Features

• AI-powered climate automation
• Temperature monitoring and control
• Relative humidity monitoring and control
• VPD monitoring and management
• Real-time environmental readings
• Environmental target settings
• Three AI climate strategies
• Device automation
• Grow Recipes through the VIVOSUN App
• Environmental logs
• Device-operation logs
• AI-operation logs
• Visual grow insights and environmental scores
• Remote monitoring
• Remote device control
• Offline operating capability
• VIVOSUN App integration

Important: AdvancedAI Mode is activated and configured through the VIVOSUN App.

The standard X42 specification lists a temperature and humidity sensor. The controller also supports VIVOSUN's compatible4-in-1 Sensor for expanded sensing functions. CO₂ and light detection should therefore only be advertised when the compatible 4-in-1 sensor is connected.

GrowHub X42 7-Inch Smart Controller

The main X42 console features a7-inch colour LCD touchscreen, providing a larger local control interface than earlier compact GrowHub controllers.

Its1024 x 600 display resolution presents current environmental readings, connected-device status, automation controls and historical information directly on the controller.

The controller measures approximately7.3 x 4.3 x 0.7 inches, equivalent to approximately18.6 x 10.9 x 1.9 cm, allowing it to be mounted conveniently outside a grow tent using its magnetic mounting system.

A supplied sensor probe extends approximately3 metres, making it easier to position the environmental sensor within the plant canopy while keeping the controller itself accessible outside the tent.

GrowHub X42 Specifications

Model: VIVOSUN GrowHub AI X42 / VSE-GHX42
Controller Dimensions: 7.3 x 4.3 x 0.7 in
Metric Dimensions: approx. 18.6 x 10.9 x 1.9 cm
Display: 7-inch colour touchscreen
Display Resolution: 1024 x 600
Display Type: LCD
Sensor Probe Length: 9.84 ft / 3 m
Standard Sensor Type: Temperature & Humidity Sensor
Additional Sensor Support: Compatible 4-in-1 Sensor
Wired Device Connections: 6, expandable with compatible splitters
Wireless Device Connections: Up to 10
Wi-Fi: 2.4GHz & 5GHz
Operating Voltage: 12V DC
Power Supply: 12V / 1A
Rated Power: 7W
Operating Temperature: 0–60°C
Operating Humidity: 35–85% RH
Detection Temperature: -40–125°C
Detection Humidity: 0–100% RH
Temperature Reading Accuracy: ±0.5°C / ±0.9°F
Humidity Reading Accuracy: ±5% RH
App Compatibility: VIVOSUN App

Grow Tent & Indoor Grow System Compatibility

The GrowHub X42 is designed for use withindoor grow tents, indoor grow rooms and compatible hydroponic growing systems.

The touchscreen controller can be mounted outside a grow tent using its built-in magnetic mounting system and supplied iron plate. This keeps the main display easily accessible while the environmental sensor remains inside the growing space.

The separate Hub can be mounted inside the grow tent using the compatible mounting hook, helping centralise connected lighting, ventilation and circulation equipment.

The X42 is designed for indoor use and should not be installed outdoors or in locations exposed to excessive moisture, corrosive chemicals or hazardous materials.

Grow tent not included.

Temperature, Humidity & VPD Management

A key function of the GrowHub X42 is its ability to use environmental data to automate compatible grow equipment.

The standard temperature and humidity sensor provides real-time readings from inside the grow area. Using this information, the controller can monitortemperature, relative humidity and VPD and use these readings as triggers for compatible environmental equipment.

For example, a compatible inline duct fan can operate automatically according to temperature, humidity or VPD thresholds. Fan speed can increase as conditions move further away from the selected target range.

Compatible heating equipment can also operate according to either a target temperature or target VPD, with safety temperature ranges available for appropriate connected equipment.

Environmental Monitoring Specifications

Temperature Monitoring: Yes
Relative Humidity Monitoring: Yes
VPD Monitoring: Yes
Temperature Detection Range: -40–125°C
Humidity Detection Range: 0–100% RH
Temperature Accuracy: ±0.5°C
Humidity Accuracy: ±5% RH
Standard Sensor Probe: Temperature & humidity
Probe Length: 3 m
4-in-1 Sensor Compatibility: Yes

For expanded environmental sensing, the X42 supports a compatibleVIVOSUN 4-in-1 Sensor. CO₂ and light detection require appropriate compatible sensing hardware and should not be treated as functions of the standard temperature/humidity probe alone.

Lighting, Ventilation & Climate Device Control

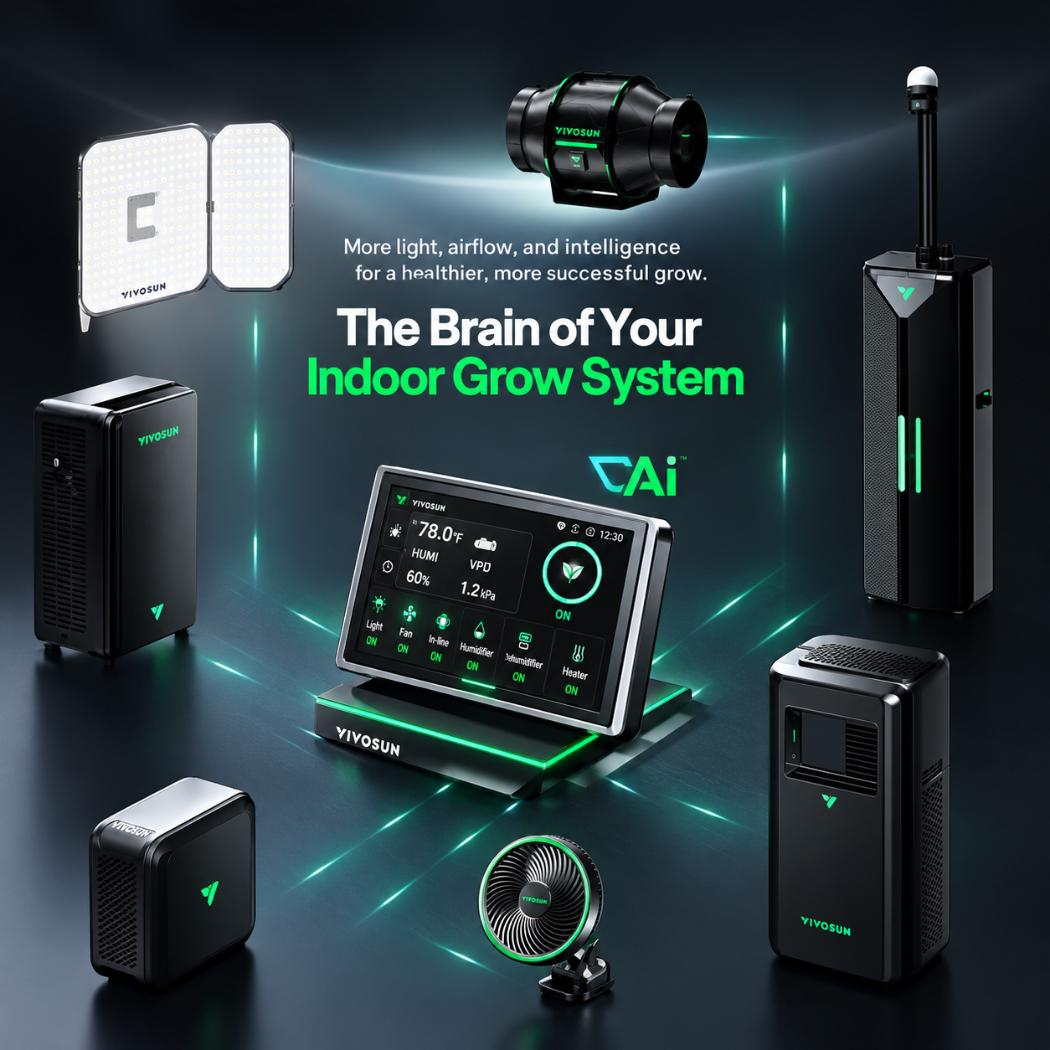

The GrowHub X42 provides central control for multiple categories of compatible VIVOSUN grow equipment.

The Hub includes dedicated interfaces for compatibleLumaLight and AeroLight grow lights, while six universal Type-C device ports can connect compatible equipment such asAeroWave clip-on fans and AeroZesh inline fans.

Compatible climate equipment can also be connected wirelessly. VIVOSUN documentation lists equipment such as compatible humidifiers, dehumidifiers, air conditioners and heaters as supported wireless climate-control devices.

Grow lights and selected wired devices can also be connected wirelessly to the X42 through compatibleE25 controllers.

Grow Light Control

Compatible grow lights can support:

• Manual operating mode
• Automated cycle mode
• Seedling spectrum settings on compatible tunable lights
• Vegetative spectrum settings on compatible tunable lights
• Flowering spectrum settings on compatible tunable lights
• Lighting schedules
• Adjustable ON/OFF durations
• 0–100% compatible light intensity adjustment
• Sunrise and sunset simulation
• Remote VIVOSUN App control

Ventilation Control

Compatible duct fans can support:

• Manual mode
• Cycle mode
• Automatic environmental control
• Fan speed adjustment
• Temperature triggers
• Humidity triggers
• VPD triggers
• Adjustable standby speed
• Maximum fan-speed limits
• Remote VIVOSUN App control

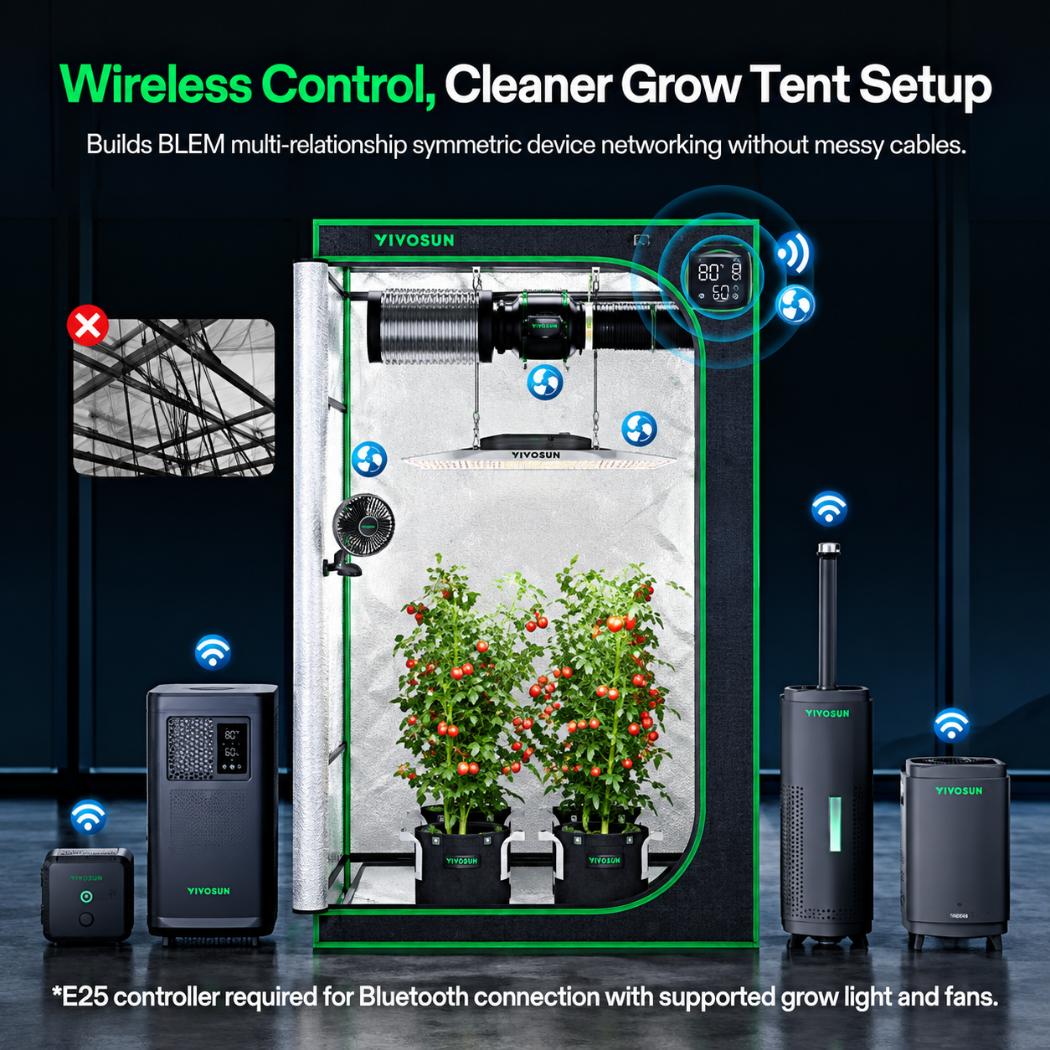

Wired & Wireless Device Connectivity

The GrowHub X42 supports a combination of wired and wireless connections, allowing growers to build a more flexible Smart Grow System.

The Hub provides dedicated converters and universal device interfaces for compatible VIVOSUN equipment.

Connection Options

RJ11 Interface: Compatible grow lights such as LumaLight
RJ45 Interface: Compatible grow lights such as AeroLight
Universal Type-C Ports A–F: Compatible AeroWave fans, AeroZesh inline fans and other supported equipment
2.5mm AUX Interface: Temperature/humidity sensor or compatible 4-in-1 sensor
Wireless Device Capacity: Up to 10 compatible devices
Wired Device Capacity: 6 connections, expandable using compatible splitters
Wi-Fi: 2.4GHz and 5GHz
App: VIVOSUN App

Compatible climate devices can connect wirelessly to the X42, helping reduce unnecessary cable management inside the grow space.

What's Included?

VIVOSUN's current GrowHub X42 documentation verifies the core controller system and installation components supplied with the X42.

• 1 x VIVOSUN GrowHub X42 Smart Controller with magnetic mounting
• 1 x GrowHub connection Hub
• 1 x 3 m Temperature & Humidity Sensor
• 1 x Power Adapter
• 1 x Iron Mounting Plate
• 1 x Magnetic Mounting Hook
• 1 x Controller-to-Hub Connection Cable
• Connection hardware supplied for compatible installation

Not Included

• Grow tent
• Grow lights
• Inline duct fan
• Circulation fan
• Carbon filter
• Humidifier
• Dehumidifier
• Air conditioner
• Heater
• E25 controllers
• VIVOSUN 4-in-1 Sensor unless specifically supplied as part of a separate bundle

Key Specifications

Complete AI Smart Indoor Grow Control

TheVIVOSUN GrowHub X42 AI Controller is designed for indoor growers who want to bring compatible lighting, ventilation, circulation and climate equipment together under one central smart-control system.

Its combination of a7-inch colour touchscreen, temperature and humidity sensing, VPD management, 6 wired connections and up to 10 wireless connections provides a flexible foundation for automating both smaller grow tents and more advanced indoor grow environments.

VIVOSUN's AI climate-control system adds an additional layer of automation by responding to real-time environmental data and coordinating compatible equipment according to selected grow targets. Eco, Standard and Performance strategies allow growers to choose between energy-conscious operation, consistent climate management and faster environmental response.

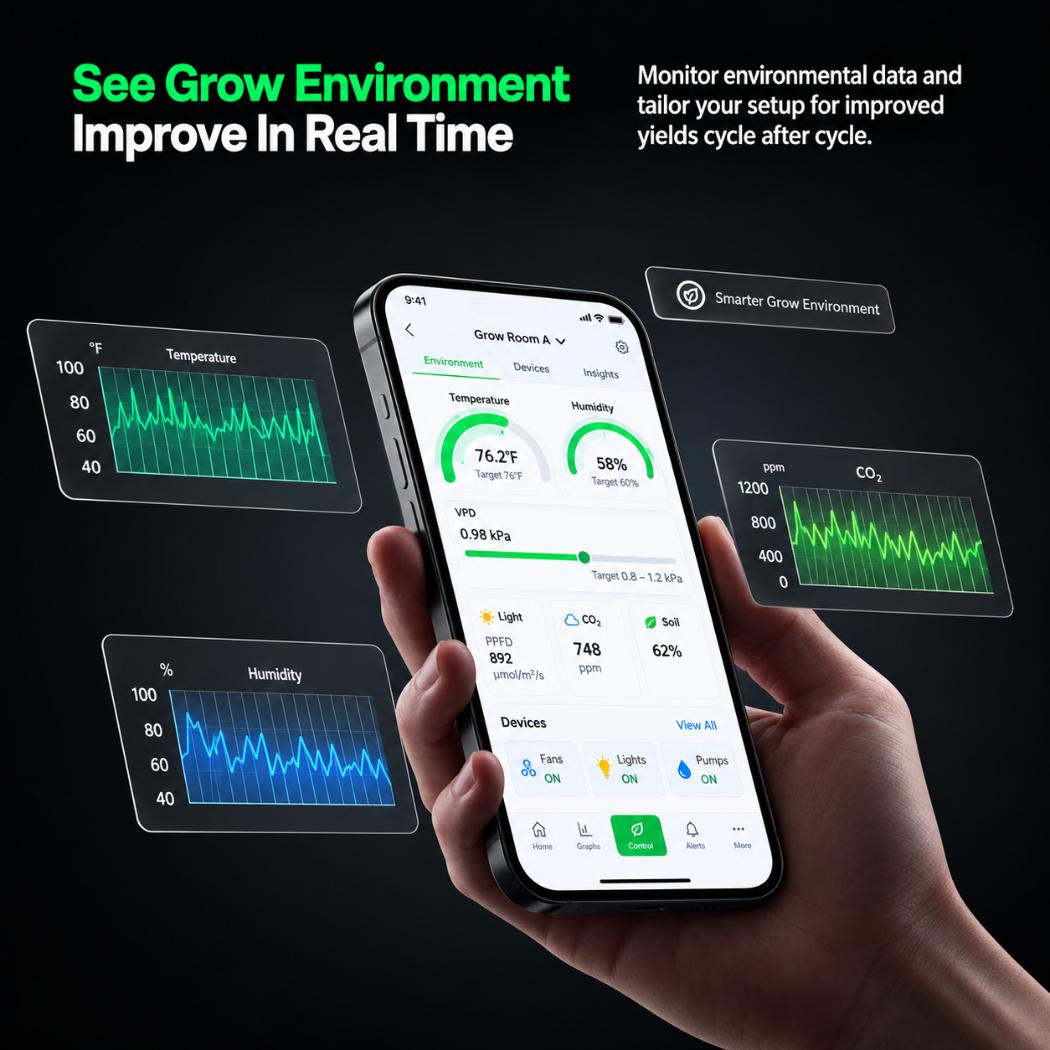

Integration with theVIVOSUN App adds remote monitoring, AI Mode configuration, Grow Recipes and access to detailed environmental and device logs. Compatible lighting can also be scheduled and dimmed, while supported ventilation and climate equipment can respond automatically to temperature, humidity and VPD conditions.

For growers building a connected Smart Grow System, the GrowHub X42 provides a central platform for combining environmental monitoring, automation, wireless device management and app-based remote control in one system.

Available in Australia from The Hippie House.
