VIVOSUN LumaRay Side Lights 4-Bar | 50W Full Spectrum LED Grow Light Bars & SGS Compatible

Product Introduction

The VIVOSUN LumaRay Side Lights 4-Bar system is designed to provide supplemental LED lighting to the sides and lower areas of an indoor plant canopy where a conventional overhead grow light may provide less direct illumination. Rather than replacing the main grow light, these compact light bars work alongside an existing fixture to improve light distribution around shaded foliage and lower growth.

The system includes four LED light bars with a combined power consumption of 50W. Each bar measures approximately 16.3 x 1.0 x 0.5 inches, or around 41.4 x 2.5 x 1.3 cm, making the lights compact enough to position vertically or horizontally around a grow tent without taking up significant growing space.

The LumaRay system produces a red-enhanced full spectrum, including 660nm deep red light, with approximately 60% of the spectrum within the 600–700nm red range. VIVOSUN specifies a lighting efficiency of 2.75 µmol/J, while prism-style optical lens covers provide a broad 120° lighting angle for supplemental side-canopy coverage.

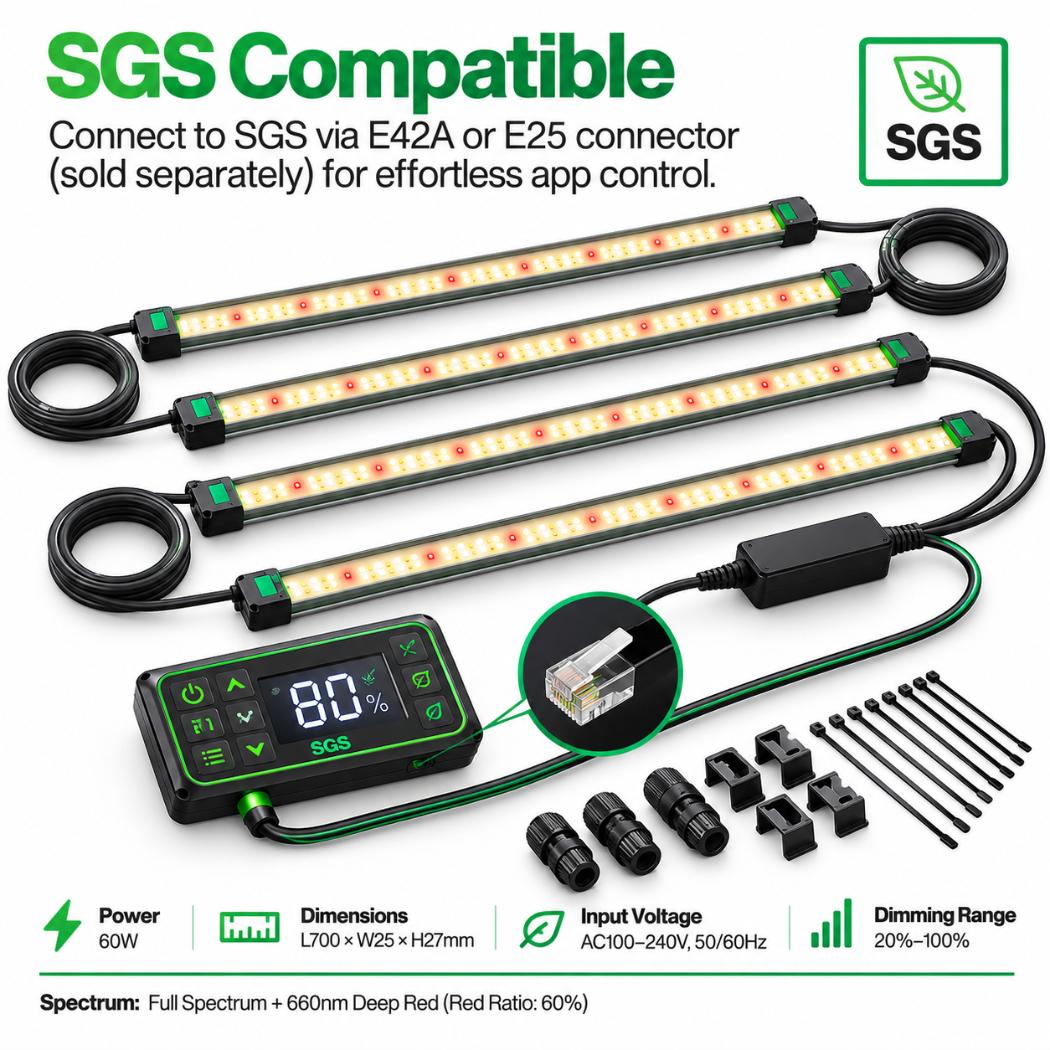

Smart GrowHub & SGS Control

The VIVOSUN LumaRay Side Lights are compatible with the VIVOSUN Smart Grow System (SGS), allowing supplemental grow lighting to be integrated with compatible smart controllers and other VIVOSUN grow equipment.

The 4-Bar system can be connected to compatible GrowHub E42A and E42A+ controllers, as well as the VIVOSUN E25 controller. When connected through a compatible controller, the lights can be managed through the VIVOSUN App for remote operation and dimming.

GrowHub control provides preset dimming levels of 25%, 50%, 75% and 100%, plus OFF, while the VIVOSUN App allows adjustable output from 25% to 100%, plus OFF.

The lights can also be integrated with compatible SGS equipment and VIVOSUN grow recipes, helping growers coordinate supplemental lighting with a wider smart indoor grow system.

SGS-Compatible Features

• VIVOSUN Smart Grow System compatibility
• GrowHub E42A compatibility
• GrowHub E42A+ compatibility
• VIVOSUN E25 controller compatibility
• VIVOSUN App control
• Remote on/off operation
• Remote light intensity adjustment
• GrowHub dimming at 25%, 50%, 75% and 100%
• VIVOSUN App dimming from 25–100%
• Grow recipe integration
• Compatibility with other supported SGS devices
• RJ11 connectivity for compatible lighting systems

Important: A GrowHub E42A, E42A+ or E25 smart controller is not included with this product and must be purchased separately.

Temperature, relative humidity and VPD monitoring hardware is also not included with the LumaRay Side Lights.

LumaRay 50W Full-Spectrum LED Side Grow Lights

Lighting is supplied by four VIVOSUN LumaRay LED light bars, with a combined power consumption of 50W.

Each bar is approximately 16 inches / 41 cm long, allowing the fixtures to be positioned around the sides of a grow tent to direct supplemental light towards lower and side foliage.

The system produces a full spectrum enhanced with 660nm deep red light. VIVOSUN specifies that approximately 60% of the spectrum falls within the 600–700nm red range, providing a red-rich supplemental lighting profile designed to complement an existing primary grow light.

The surface of the LED lamp board uses a 99% reflective film, while the prism-style optical lens cover is designed for high light transmission, reduced glare and easier cleaning. The lens system provides a broad 120° coverage angle.

The LumaRay 4-Bar system has a specified efficiency of 2.75 µmol/J.

VIVOSUN does not publish a specific PPFD measurement for the exact VSL-LRSF50-4 model, so a PPFD value should not be added to this listing.

The light bars carry an IP54 protection rating and have a published operating lifespan of approximately 25,000 hours.

LumaRay 4-Bar Specifications

Model: VIVOSUN LumaRay Side Lights / VSL-LRSF50-4
Number of Light Bars: 4
Total Power: 50W
Individual Bar Dimensions: 16.3 x 1.0 x 0.5 in / approx. 41.4 x 2.5 x 1.3 cm
Light Bar Length: Approx. 16 in / 41 cm
System Weight: 2.36 lb / approx. 1.07 kg
Spectrum: Full Spectrum + 660nm Deep Red
Red Spectrum Ratio: Approx. 60% within 600–700nm
Efficiency: 2.75 µmol/J
Light Coverage Angle: 120°
PPFD: Not specified by VIVOSUN for this model
Manual/GrowHub Dimming: 25% / 50% / 75% / 100% / OFF
VIVOSUN App Dimming: 25–100% / OFF
Input Voltage: 120–240VAC
Frequency: 50–60Hz
Power Cord Length: 8.3 ft / approx. 2.5 m
Protection Rating: IP54
Rated Lifespan: 25,000 hours

Grow Tent Compatibility & Installation

The LumaRay Side Lights are designed primarily as supplemental grow tent lighting rather than as a standalone primary overhead grow light.

Their slim bar design allows them to be installed around the sides of an indoor grow area, directing additional illumination towards foliage that may be shaded by the upper plant canopy.

VIVOSUN provides two main installation methods. The included support pole clamps allow the bars to be mounted directly to compatible grow tent frame poles, while the supplied magnetic clamps and metal plates allow the lights to be positioned against compatible tent walls.

The bars can therefore be positioned according to plant height, canopy structure and the layout of the growing space.

The system can also be daisy-chained with compatible lighting equipment featuring an appropriate RJ11 connection, providing additional flexibility when building a wider supplemental lighting setup.

Grow tent not included.

Because this listing is for supplemental LED grow light bars only, grow tent canvas, reflective Mylar, steel framing and ventilation ports do not form part of this product.

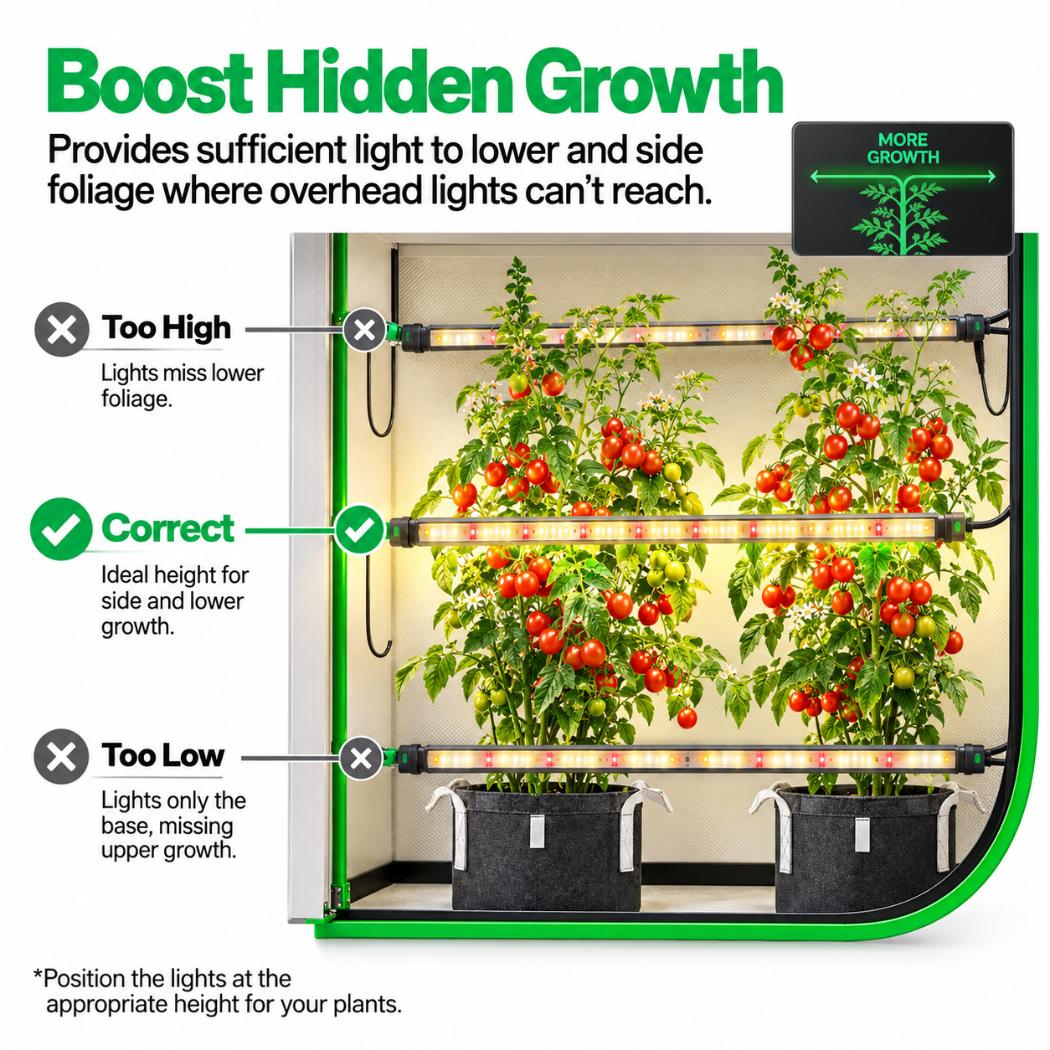

Supplemental Side-Canopy Lighting

Unlike a standard overhead LED grow light, the LumaRay system is specifically designed to deliver additional light to side and lower foliage.

Dense plant canopies can reduce the amount of overhead light reaching lower leaves and growth sites. Positioning LumaRay bars around the sides of the growing area helps provide additional illumination to these less-exposed areas.

The broad 120° beam angle helps distribute supplemental light across the canopy rather than directing it into a narrow spot, while the red-enhanced full spectrum complements the output from a primary indoor grow light.

The compact gallium nitride power supply is designed for efficient power conversion with relatively low heat output, while the optical lens covers help protect the LED chips and simplify routine cleaning.

Supplemental Lighting Details

Lighting Type: Supplemental LED side lighting
Number of Bars: 4
Total Power: 50W
Light Bar Length: Approx. 41 cm
Spectrum: Full Spectrum + 660nm Deep Red
Beam Angle: 120°
Primary Overhead Grow Light: Not included
Integrated Circulation Fan: No
Inline Extraction Fan: Not included
Carbon Filter: Not included
Ventilation Ducting: Not included

The LumaRay bars are designed to supplement, rather than replace, an appropriately sized primary overhead grow light.

What's Included?

According to VIVOSUN's exact VSL-LRSF50-4 manual, the package includes:

• 4 x VIVOSUN LumaRay LED Light Bars
• 1 x Power Adapter
• 4 x Magnetic Clamps
• 4 x Metal Plates
• 4 x Support Pole Clamps
• 1 x Connecting Cable
• 7 x Wire Mounts

Not Included

• GrowHub E42A controller
• GrowHub E42A+ controller
• E25 smart controller
• Grow tent
• Primary overhead LED grow light
• Inline extraction fan
• Circulation fan
• Carbon filter
• Ventilation ducting

Key Specifications

Complete Smart Supplemental Indoor Grow Lighting

The VIVOSUN LumaRay Side Lights 4-Bar system is suited to indoor gardeners who already have a primary overhead grow light and want to improve the distribution of supplemental light around the sides and lower sections of their plant canopy.

Its four slim 41 cm LED light bars, combined 50W power, 2.75 µmol/J efficiency, broad 120° lighting angle and red-enhanced full spectrum provide a practical way to illuminate areas that can receive less direct light from an overhead fixture.

Flexible pole and magnetic mounting options allow the bars to be positioned according to the layout of the grow tent and plant canopy. Their compact form also means supplemental lighting can be added without occupying substantial growing space.

Growers who want additional automation can connect the LumaRay system to a compatible VIVOSUN E42A, E42A+ or E25 controller. This provides VIVOSUN App access for remote operation, dimming and integration with the wider VIVOSUN Smart Grow System.

For growers upgrading an existing indoor grow setup, the LumaRay 4-Bar system provides a flexible combination of full-spectrum supplemental lighting, 660nm deep-red output, smart-control compatibility and easy grow tent installation.

Available in Australia from The Hippie House.
