VIVOSUN LumaRay Side Lights 8-Bar | 100W Full Spectrum LED Grow Light Bars & SGS Compatible

Product Introduction

TheVIVOSUN LumaRay Side Lights 8-Bar system is a 100W supplemental LED grow lighting solution designed to deliver additional light to the sides and lower areas of an indoor plant canopy. Rather than replacing the main overhead grow light, the eight slim LED bars are designed to reach foliage and growth sites that may receive less direct illumination from above.

The system includeseight 16-inch / 41 cm LED light bars with a combined power consumption of100W. Their compact profile makes them particularly useful inside grow tents, where the bars can be positioned vertically or horizontally around support poles and tent walls to improve light distribution through the canopy.

The LumaRay produces ared-enhanced full spectrum with 660nm deep red light, with approximately60% of the spectrum within the 600–700nm red range. VIVOSUN specifies an efficiency of2.75 µmol/J, while the prism-style optical covers provide a broad120° lighting angle for supplemental side-canopy illumination.

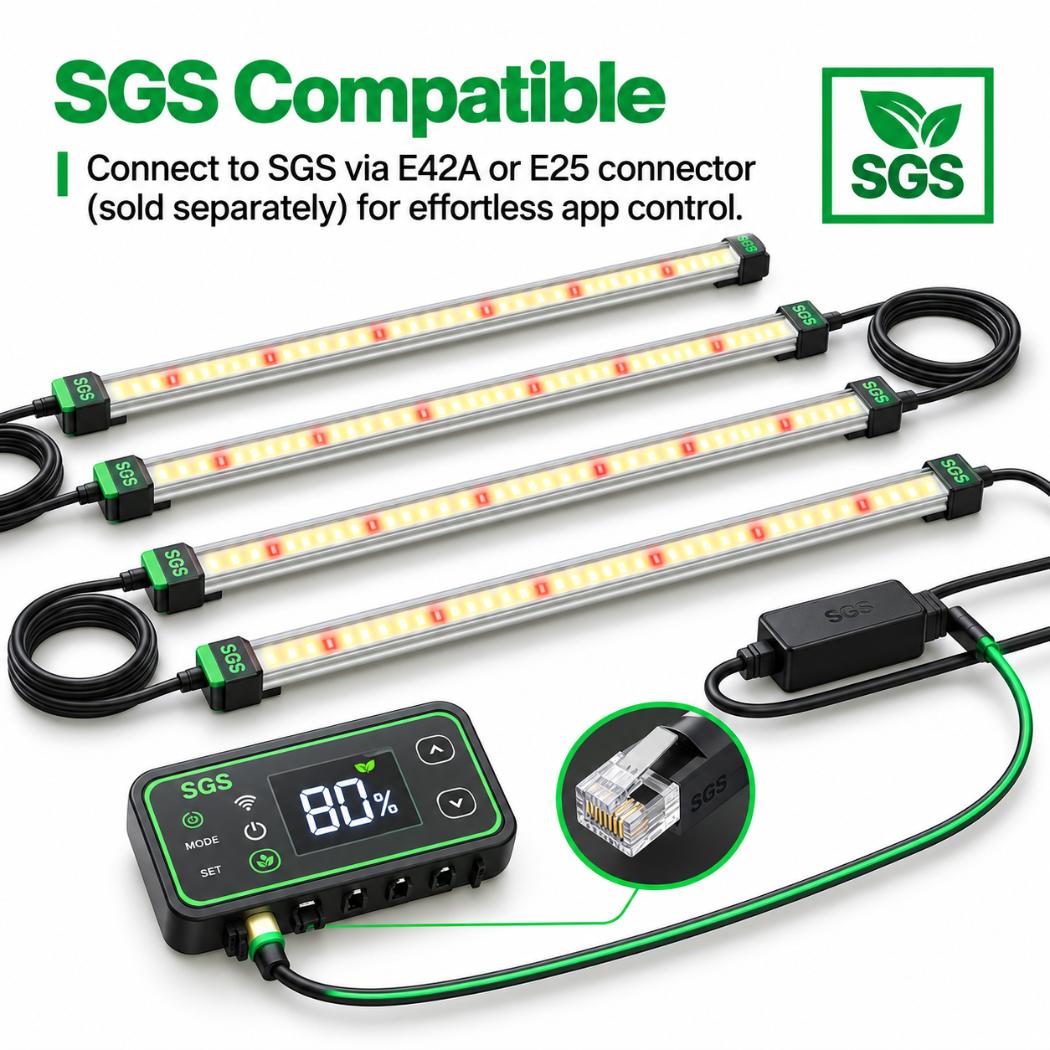

Smart GrowHub Control

TheVIVOSUN LumaRay Side Lights 8-Bar system is compatible with the wider VIVOSUN Smart Grow System, allowing growers to integrate supplemental lighting with compatible smart controllers and other connected grow equipment.

The lights can connect to compatibleVIVOSUN E42A, E42A+ and E25 controllers. When paired with suitable controller hardware, the system can be managed through theVIVOSUN App for remote lighting control.

GrowHub control provides preset dimming levels of25%, 50%, 75% and 100%, plus OFF, while the VIVOSUN App allows light output to be adjusted from25% to 100%, plus OFF.

The system can also be integrated with compatible SGS devices and VIVOSUN Grow Recipes, helping growers coordinate supplemental lighting with a wider automated indoor growing setup.

GrowHub-Compatible Features

• VIVOSUN Smart Grow System compatibility
• GrowHub E42A compatibility
• GrowHub E42A+ compatibility
• E25 controller compatibility
• VIVOSUN App compatibility
• Remote on/off control
• Remote light intensity adjustment
• Lighting schedules
• Automated Grow Recipe integration
• GrowHub dimming at 25%, 50%, 75% and 100%
• VIVOSUN App dimming from 25–100%
• Integration with compatible SGS equipment

Important: VIVOSUN E42A, E42A+ and E25 controllers aresold separately and are not included with the LumaRay Side Lights 8-Bar system.

Temperature, relative humidity and VPD monitoring should not be advertised as included functions of the LumaRay lights themselves because dedicated environmental sensing hardware is not included with this product.

LumaRay 100W Full-Spectrum LED Side Grow Lights

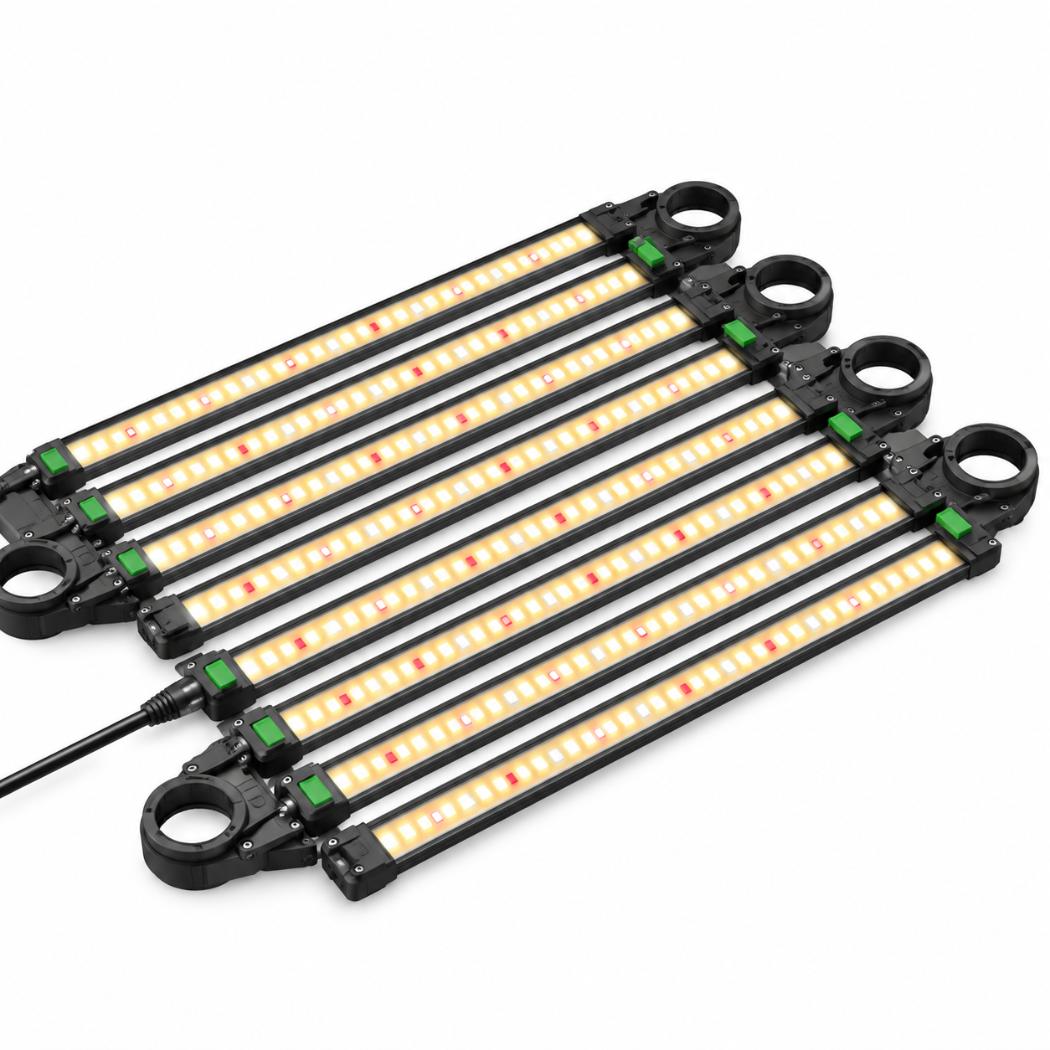

Lighting is supplied by theVIVOSUN LumaRay VSL-LRSF50-8, consisting of eight slim LED light bars with a combined system power consumption of100W.

Each individual light bar measures approximately16.3 x 1.0 x 0.5 inches, with a length of approximately41 cm. The compact bar design allows the system to be installed around plant canopies without occupying significant growing space.

The LumaRay uses afull-spectrum output enhanced with 660nm deep red light. Approximately60% of the spectrum falls within the 600–700nm red range, providing additional red-rich illumination to lower and side foliage.

The surface of the lamp board uses a highly reflective design, while the prism-style optical lens covers are designed for high light transmission, LED protection, easier cleaning and reduced glare.

A broad120° lighting angle helps distribute supplemental light across the side canopy rather than concentrating output into a narrow beam.

For this exact 8-Bar model, VIVOSUN specifies an efficiency of2.75 µmol/J.

The LumaRay Side Lights carry anIP54 protection rating and have a published operating lifespan of approximately25,000 hours.

LumaRay 8-Bar Specifications

Model: VIVOSUN LumaRay / VSL-LRSF50-8
Number of LED Bars: 8
Total Power: 100W
Individual Bar Dimensions: 16.3 x 1.0 x 0.5 in
Individual Bar Length: 16 in / approx. 41 cm
System Weight: 4.72 lb / approx. 2.14 kg
Spectrum: Full spectrum + 660nm deep red
Red Spectrum Ratio: Approx. 60% within 600–700nm
Efficiency: 2.75 µmol/J
Lighting Angle: 120°
Manual/GrowHub Dimming: 25% / 50% / 75% / 100% / OFF
VIVOSUN App Dimming: 25–100% / OFF
Input Voltage: 120–240VAC, 50–60Hz
Power Cord Length: 8.3 ft / 2.5 m
Protection Rating: IP54
Rated Lifespan: 25,000 hours

Grow Tent Compatibility

The LumaRay Side Lights are designed specifically assupplemental grow tent lighting, allowing additional light to be positioned around the sides and lower sections of a plant canopy.

The system includes eight slim bars that can be distributed around a larger grow tent or positioned in pairs around different sides of the growing area according to plant height, canopy density and the layout of the primary overhead lighting.

The includedsupport pole clamps allow the bars to be mounted directly onto compatible grow tent poles. Alternatively, the suppliedmagnetic clamps and metal plates allow the bars to be secured to grow tent walls.

VIVOSUN recommends maintaining more than approximately2 inches / 5.1 cm between the light bars and plants.

The VSL-LRSF50-8 also supportsdaisy-chain connection, allowing the side-light system to be organised more neatly within compatible indoor growing setups.

Grow tent not included.

Because this product is a supplemental lighting system only, grow tent canvas, reflective Mylar, steel framing and other enclosure components are not supplied.

Supplemental Side-Canopy Lighting

The LumaRay 8-Bar system is designed to supplement overhead grow lighting by directing additional illumination towards plant areas that may otherwise remain shaded.

Dense upper canopies can reduce the amount of overhead light reaching lower leaves and growth sites. Installing supplemental LED bars around the sides of the growing area provides additional light pathways into these lower and side sections of the canopy.

The system's120° beam angle helps spread light across a wider area, while the red-enhanced full spectrum provides a high proportion of light within the600–700nm range, including660nm deep red.

VIVOSUN uses agallium nitride power supply, providing a compact and efficient power system with relatively low heat output.

Unlike AeroLight fixtures, the LumaRay does not include a circulation fan. Ventilation and air movement should therefore be provided separately according to the needs of the complete grow setup.

Lighting & Ventilation Details

Lighting Type: Supplemental side-canopy LED lighting
Number of Bars: 8
Combined Power: 100W
Beam Angle: 120°
Integrated Circulation Fan: No
Inline Extraction Fan: Not included
Carbon Filter: Not included
Ventilation Ducting: Not included
Smart Lighting Control: SGS / GrowHub compatible
App Lighting Control: Supported through compatible controller

The LumaRay Side Lights are intended tocomplement a primary overhead grow light, rather than replace the main lighting and ventilation systems used in an indoor grow tent.

What's Included?

VIVOSUN's official documentation verifies the following package contents for the exactVSL-LRSF50-8 8-Bar system:

• 8 x LumaRay LED Light Bars
• 2 x Power Adapters
• 8 x Magnetic Clamps
• 8 x Metal Plates
• 8 x Support Pole Clamps
• 2 x Connecting Cables
• 14 x Wire Mounts
• 1 x Additional Connecting Cable
• 1 x USB-C Splitter

Not Included

• VIVOSUN E42A controller
• VIVOSUN E42A+ controller
• VIVOSUN E25 controller
• Main overhead LED grow light
• Grow tent
• Inline extraction fan
• Carbon filter
• Ventilation ducting
• Temperature/humidity sensor probe

Key Specifications

Complete Smart Supplemental Indoor Grow Lighting

TheVIVOSUN LumaRay Side Lights 8-Bar system is well suited to indoor growers who already have a primary overhead LED grow light and want to improve light distribution throughout a larger or denser plant canopy.

Its combination ofeight 41 cm LED bars, 100W total output, 2.75 µmol/J efficiency and a 120° lighting angle provides flexible supplemental illumination for lower and side foliage. The red-enhanced full spectrum, including 660nm deep red light, complements an existing grow-light setup while providing additional lighting in areas that may receive less direct illumination from above.

The flexible mounting system allows each bar to be positioned around grow tent poles or walls according to canopy shape and plant height. With eight individual bars, growers have additional flexibility to spread supplemental lighting around multiple sides of their indoor growing space.

Growers who want smart automation can connect the LumaRay system to compatibleVIVOSUN E42A, E42A+ or E25 controllers. This enables VIVOSUN App access for remote on/off operation, dimming and integration with other compatible Smart Grow System equipment and Grow Recipes.

For indoor growers looking to expand an existing lighting system, the LumaRay 8-Bar system provides a practical combination of full-spectrum supplemental lighting, flexible installation and optional smart-control integration.

Available in Australia from The Hippie House.
