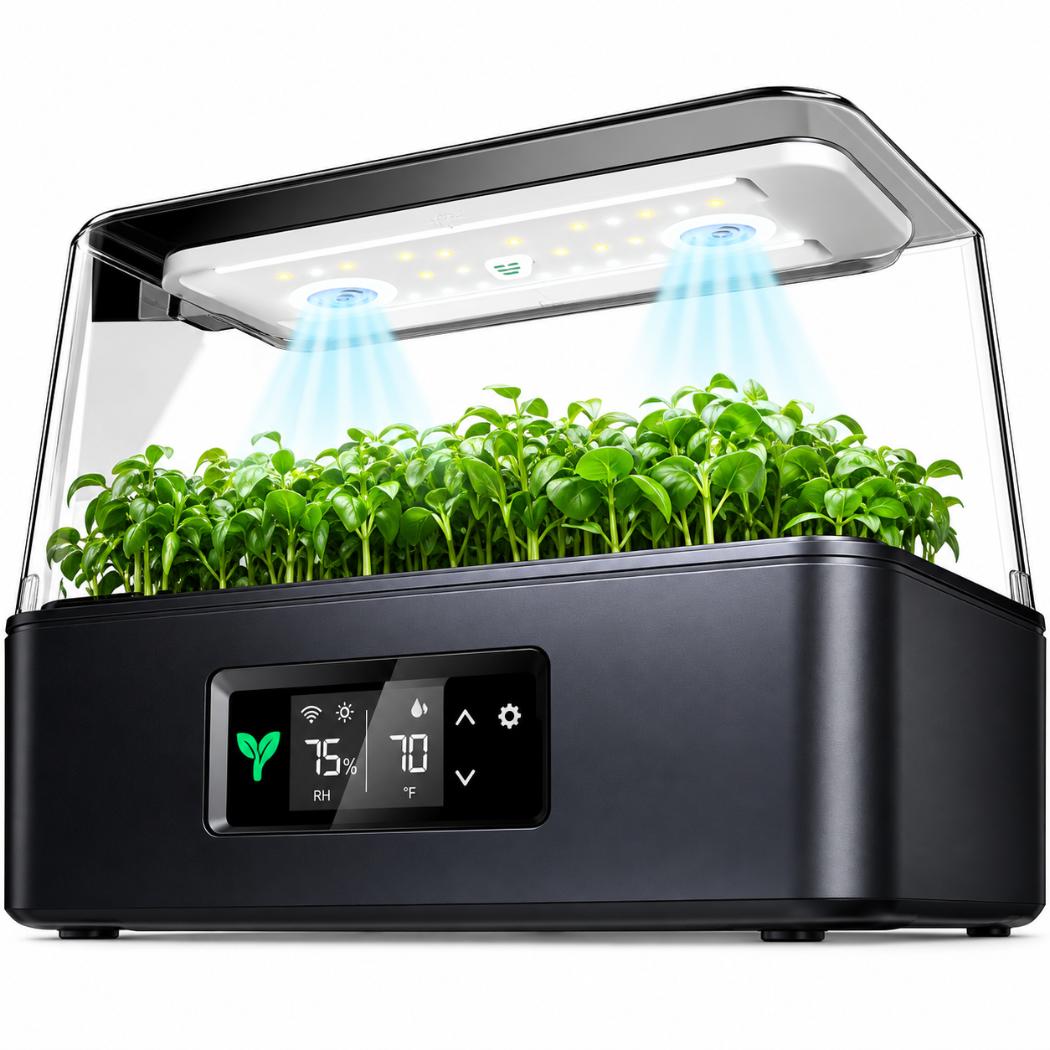

VIVOSUN VSeed S40 Smart Seedling Box | 40-Cell Seed Starting & Cloning System with Ebb & Flow Irrigation

Product Introduction

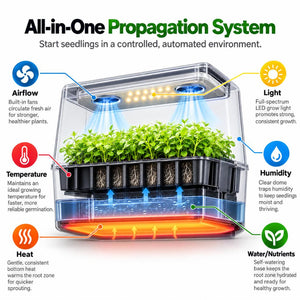

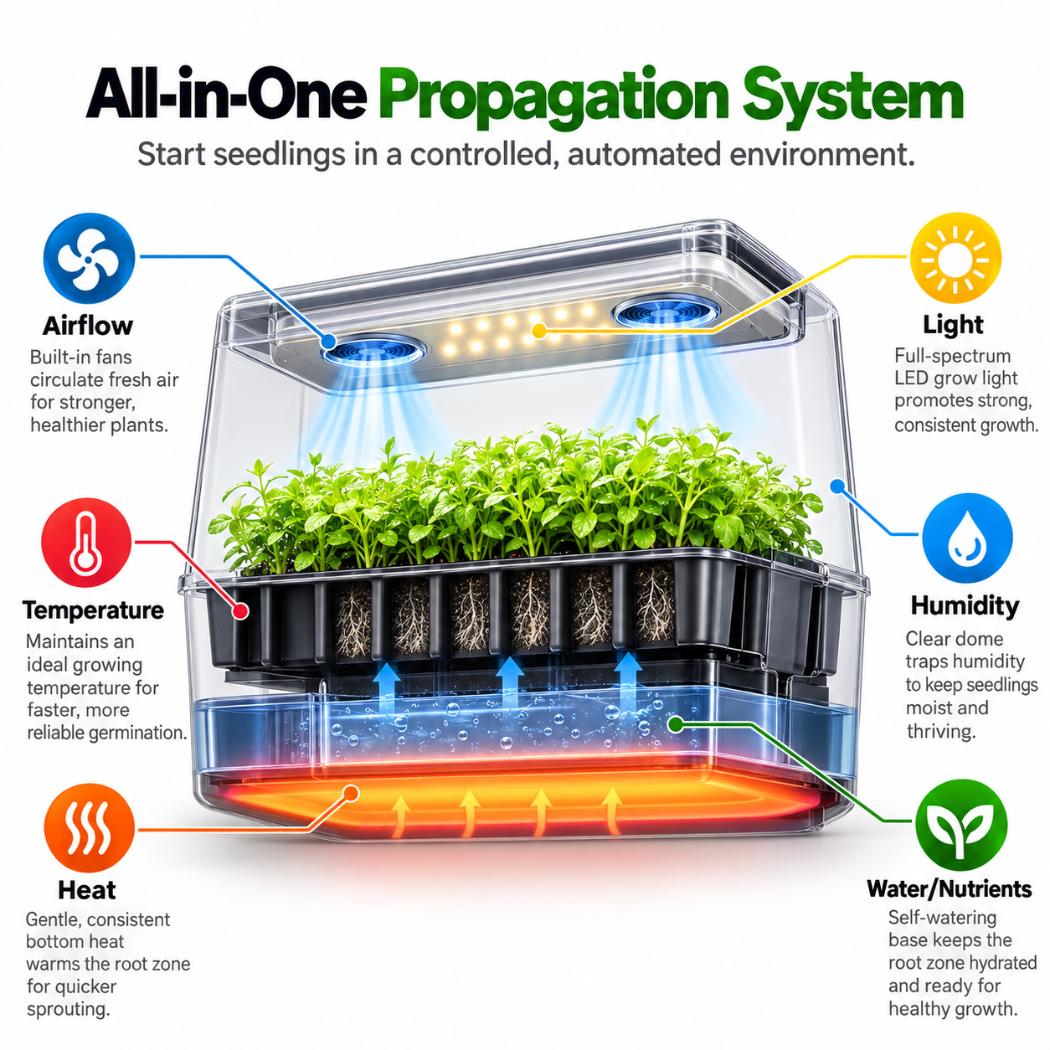

TheVIVOSUN VSeed S40 Smart Seedling Box is an all-in-one indoor propagation system designed for seed starting, germination, rooting and cloning. It combines adjustable full-spectrum LED lighting, automated ebb-and-flow irrigation, root-zone heating, active dual-fan ventilation and environmental monitoring inside one compact controlled growing chamber.

Designed around a40-cell seed starter tray, the VSeed S40 measures approximately44 x 27.5 x 32.6 cm and provides up to17 cm of internal grow height. Its built-in4L water reservoir supports automated irrigation, while the clear dome allows growers to monitor developing seedlings without repeatedly opening the growing environment.

Unlike a conventional propagation tray, the VSeed S40 actively manages several important early-growth conditions. Its30W adjustable full-spectrum LED grow light, ThermoFlow root-zone heating, automated irrigation and intake/exhaust ventilation work together to create a more consistent environment for young plants. Built-in Wi-Fi and VIVOSUN App connectivity also allow remote monitoring and control without requiring a separate GrowHub controller.

Smart VIVOSUN App Control

TheVIVOSUN VSeed S40 includes integrated smart connectivity, allowing the seedling system to connect directly to theVIVOSUN App through a2.4GHz Wi-Fi network.

Through the app, growers can manage lighting and irrigation cycles, monitor environmental conditions and access guidance for the different stages of propagation.

The unit also includes an onboardLCD control interface, so essential settings can be managed directly from the VSeed without relying exclusively on a smartphone.

The system provides dedicated modes forGermination, Rooting and Seedling stages, allowing environmental targets to be adjusted according to the development stage of young plants.

Smart Control Features

• Built-in 2.4GHz Wi-Fi connectivity
• VIVOSUN App compatibility
• Remote monitoring
• Lighting control
• Adjustable light intensity
• Lighting schedules and cycles
• Automated irrigation control
• Quick irrigation function
• Root-temperature control
• Dome temperature monitoring
• Dome humidity monitoring
• Root-temperature monitoring
• Germination stage mode
• Rooting stage mode
• Seedling stage mode
• Environmental guidance through the VIVOSUN App
• Onboard LCD controls

Important: A separate VIVOSUN GrowHub controller isnot required for the VSeed S40's built-in smart functions.

The VSeed contains its own temperature and humidity sensing system for monitoringdome temperature, dome relative humidity and root temperature.

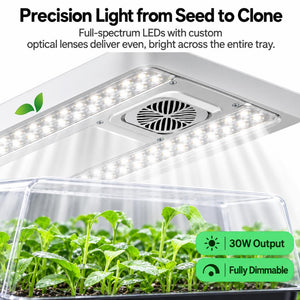

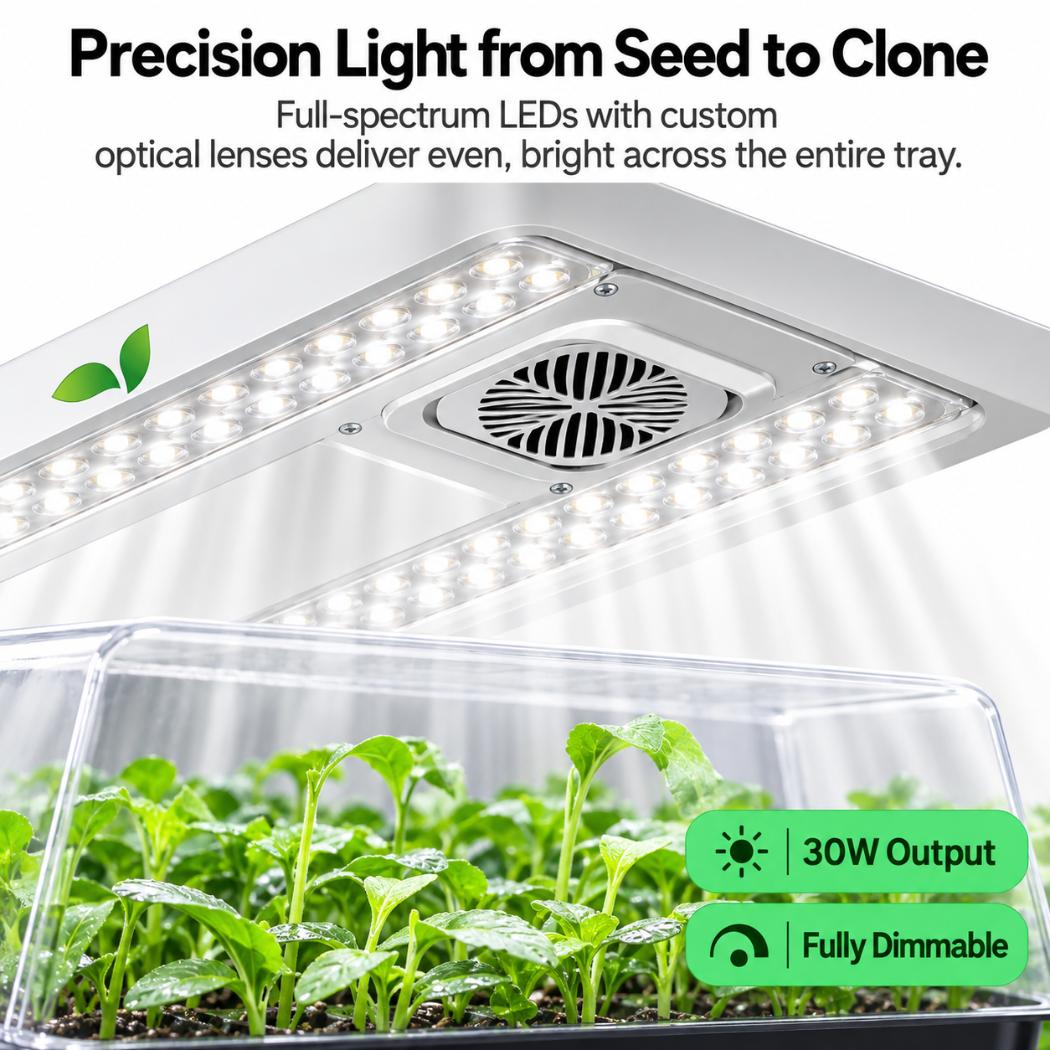

VSeed S40 Full-Spectrum Seedling Grow Light

Lighting is integrated directly into theVIVOSUN VSeed S40, providing young plants with adjustable full-spectrum illumination across the seed starter tray.

The exact current VSeed manual specifies a30W adjustable full-spectrum LED grow light. The lighting system is designed specifically for early plant development, providing broad illumination across the tray for germination, rooting and seedling growth.

The clear upper dome houses the lighting system above the propagation area, helping keep the fixture correctly positioned over all 40 growing sites.

Lighting can be managed through the onboard controls or theVIVOSUN App, including adjustments to light intensity and light-cycle settings.

VSeed Lighting Specifications

Lighting System: Integrated adjustable full-spectrum LED
Light Power: 30W
Application: Seed starting, rooting, cloning and seedlings
Light Intensity: Adjustable
Light Cycle: Programmable
Smart Control: Built-in VIVOSUN App support
Wi-Fi: 2.4GHz
GrowHub Required: No

Seedling Chamber & 40-Cell Propagation Tray

The VSeed S40 is designed as a compact enclosed propagation chamber measuring approximately17.3 x 10.8 x 12.8 inches, equivalent to approximately44 x 27.5 x 32.6 cm.

Inside the chamber is a40-cell seed starter tray, allowing multiple seedlings or clones to be propagated simultaneously within the same controlled environment.

The maximum internal grow height is approximately6.7 inches / 17 cm, making the unit specifically suited to early plant development rather than full-size vegetative or flowering plants.

A clear high-clarity dome provides visibility into the propagation area while helping maintain the controlled humidity and temperature conditions required during germination and early rooting.

Propagation Chamber Specifications

Dimensions: 17.3 x 10.8 x 12.8 in
Metric Dimensions: Approx. 44 x 27.5 x 32.6 cm
Grow Height: 6.7 in / 17 cm
Seed Starter Capacity: 40 cells
Water Tank Capacity: 1.1 gal / 4L
Display: LCD
Indoor Use: Yes

Automated Ebb & Flow Irrigation & ThermoFlow Heating

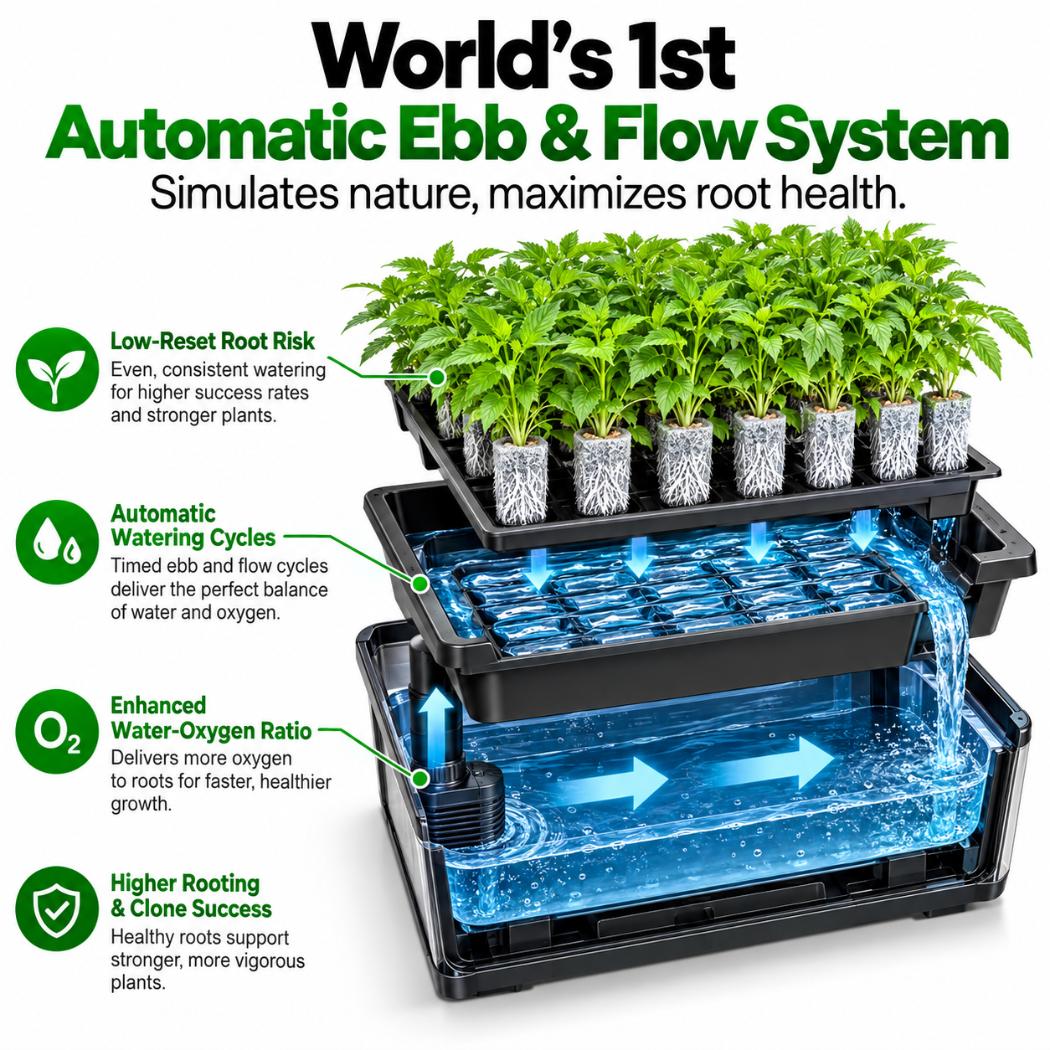

A key feature of the VSeed S40 is its integratedautomated ebb-and-flow irrigation system.

Rather than relying on repeated manual watering, the system raises water into the propagation tray during an irrigation cycle and then allows it to drain back into the reservoir. This provides moisture to the growing medium while allowing excess water to drain away afterwards.

Under automatic operation, VIVOSUN specifies a10-minute ebb-and-flow irrigation cycle approximately 30 minutes after the grow light turns on.

The internal pump is rated atDC 5V, 2W with a flow rate of 20 gal/h.

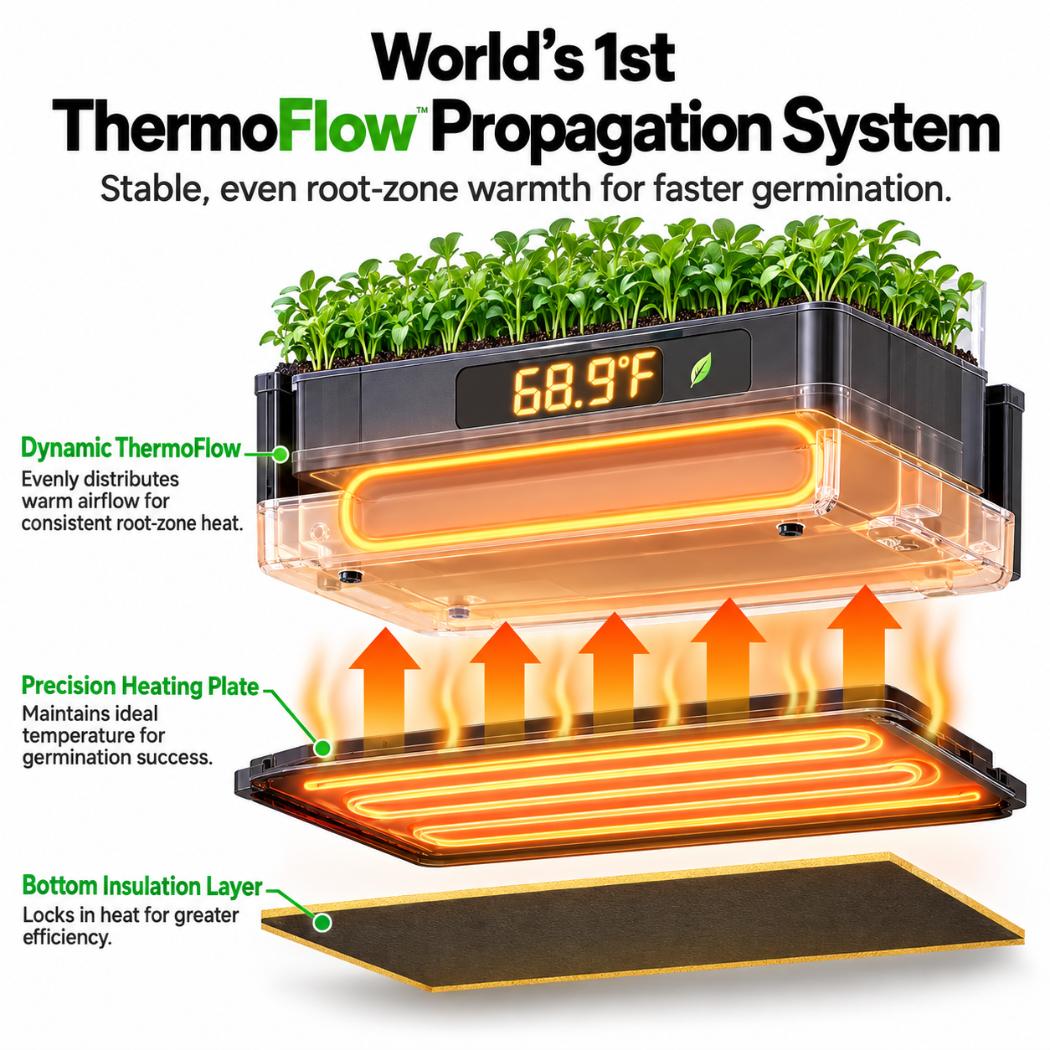

The system also incorporates VIVOSUN'sThermoFlow propagation system, which combines water circulation and root-zone heating. A40W heating system warms the circulating water to help maintain a stable root-zone temperature.

The programmable root-temperature setting can be adjusted between approximately20°C and 32°C.

VIVOSUN specifies that at an ambient temperature of15°C, the heating system can increase root-zone temperature by up to approximately10°C.

Irrigation & Heating Specifications

Irrigation Type: Automated ebb and flow
Automatic Irrigation Cycle: 10 minutes
Pump: DC 5V, 2W
Pump Flow: 20 gal/h
Reservoir Capacity: 4L
Heating System: ThermoFlow root-zone heating
Heating Power: 40W
Programmable Root Temperature: 20–32°C
Maximum Heating Capacity: Up to 10°C increase at 15°C ambient
Water Circulation: Integrated

Active Dual-Fan Ventilation System

The VSeed S40 includes anactive dual-fan ventilation system designed to maintain airflow inside the enclosed propagation chamber.

The system uses a dedicatedintake fan and exhaust fan, helping exchange air and reduce excess moisture accumulation around developing seedlings and clones.

Each fan is rated at approximately0.72W.

By combining active airflow with real-time temperature and humidity monitoring, the VSeed can provide a more controlled propagation environment than a passive humidity dome alone.

Ventilation Specifications

Ventilation Type: Active dual-fan airflow
Intake Fan: 0.72W
Exhaust Fan: 0.72W
Temperature Monitoring: Yes
Humidity Monitoring: Yes
Root Temperature Monitoring: Yes
Smart App Monitoring: Yes

What's Included?

The VSeed S40 package includes the core propagation chamber and accessories required for setup.

• 1 x VIVOSUN VSeed S40 Base Unit
• 1 x Clear Dome Lid
• 1 x Water Level Indicator
• 40 x Seed Cups
• 6 x Germination Covers
• 1 x Type-C to Type-C Connection Cable
• 1 x Power Adapter

The VSeed is designed to accept compatible propagation media or seed rooters according to the grower's preferred setup.

Key Specifications

Complete Smart Indoor Seed Starting & Cloning System

TheVIVOSUN VSeed S40 Smart Seedling Box is well suited to indoor gardeners who want a more controlled way to start seeds, establish young seedlings or propagate clones without managing separate lights, heat mats, watering trays and ventilation equipment.

Its combination of a40-cell propagation tray, 30W adjustable full-spectrum LED lighting, automated ebb-and-flow irrigation, 4L reservoir, ThermoFlow root-zone heating and active dual-fan ventilation brings several important propagation functions together in one compact unit.

Built-in temperature, humidity and root-temperature monitoring provides useful environmental information directly on the LCD display and through the VIVOSUN App. Programmable Germination, Rooting and Seedling modes also make it easier to adjust the system as young plants progress through early development.

With direct2.4GHz Wi-Fi connectivity, growers can use the VIVOSUN App without purchasing a separate GrowHub controller, providing remote monitoring, lighting management and irrigation control from a smartphone.

For indoor seed starting and cloning, the VSeed S40 provides an integrated alternative to assembling multiple separate propagation components, with lighting, irrigation, heating, airflow and smart environmental monitoring designed to work together in one system.

Available in Australia from The Hippie House.
