Current Culture UC 16XL - DB

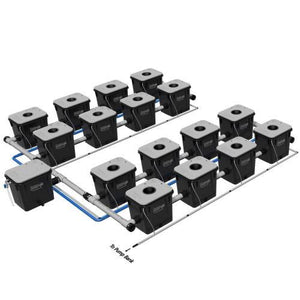

Current Culture UC 16XL - 16 Plant RDWC System

Size: 2.86m x 3.09m

Current Culture are the world renowned for their patented undercurrent hydroponic systems and the UC Double-Barrel (DB) XL is their flagship producer for larger hobby commercial growers. Featuring a different square layout compared to the standard UC 16 XL Layout. Medical-grade cultivators are installing these systems all over the globe to increase their productivity and quality of harvest.

The Current Culture UC16 XL is a powerful setup and includes 16 pots and all required irrigation equipment and supplies. All Current Culture kits are perfectly cut to size, and manufactured for durability.

NUMBER OF ROWS: 4
NUMBER OF SITES: 16
PLANT SPACING & MODULE SIZE: 25″ Centers / 8 Gallon


RECOMMENDATIONS

• GROW AREA (FEET / METERS): 12′ x 12′ / 3.66m x 3.66m
• LIGHTING (HORIZONTAL): 4 X 1000W
• LIGHTING (VERTICAL): N/A
• WATER CHILLER SIZE* (HP): 1/4 – 1/2 HP
• RESERVOIR (GALLONS / LITERS): 125 / 500
• VEG TIME (WEEKS/IN.): 2-3 weeks / 18″-24″

*General Recommendation – Check Manufacturers Specifications for proper chiller sizing.


SPECS

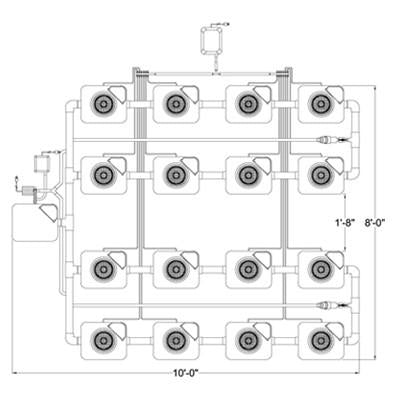

• SYSTEM FOOTPRINT (FEET / METERS): 8’2″ x 9’7″ / 2.5m x 2.93m
• TOTAL SYSTEM VOLUME (GALLONS / LITERS): 120 / 455
• POWER USAGE (WATTS): 203
• AIR PUMP SIZE(S) (LPM): (1)30, (1)80
• AERATION RATE (LPM PER GALLON): 0.92
• WATER PUMP SIZE (GPH / LPH): 950 / 3597
• RECIRCULATION RATE (EXCHANGES PER HR.): 7.92

SHIPPING INFO
SHIPPING WEIGHT (LBS. / KG): 165 / 74.9
SHIPPING BOX SIZES (IN.): (2)16X18X36, (1)16x18x48


PROVEN PRODUCTION SYSTEM WITH:

Prolific Yield Potential:

• Increased growth rates produce larger overall plants and drastically reduced vegetative times
• Higher productivity with fewer plants

Increased efficiency

• High levels of aeration and constant circulation optimize plants nutrient uptake capacity
• Conserves water and necessitates less frequent nutrient change-outs

Proven Nutrient Formula

• Our Cultured Solutions premium plant nutrients are custom formulated specifically for the Under Current® system and high-performance hydroponics Cultured Solutions® are pH stable, clean and highly chelated

Reduced Maintenance

• pH, EC/TDS and solution temperatures stay uniform throughout the entire system
• Easily adaptable to pH/nutrient dosers, top-off reservoirs and water chillers

The Under Current DB 16 XL Includes:

• 8 Gallon “Blackout Series” Growth Modules
• CCH2O 8″ Heavy Duty Lids with Port Hole
• CCH2O 8″ Heavy Duty Net Pots
• 2″ Manifold & Joints with 2” UC Spin-Tight Bulkheads
• Danner Mag-Drive™ Return Pump
• Premium Linear Air Pump(s)
• 9” Air Diffuser Disc
• Aqua-Pore Air Diffusers
• Air Distribution Manifold
• Air Hose, In-Line Filter(s)
• Adjustable Float Valve with Reservoir Adapter Kit
• Drain Valve
• Chiller Adapter
• Garden Hose Drain Adapter
• Cultured Solutions™ VEG A/B
• 1-Year Warranty.
