DLI CRI-Series CMH Fixture - 315W

DLI CRI-Series CMH Fixture - 315W

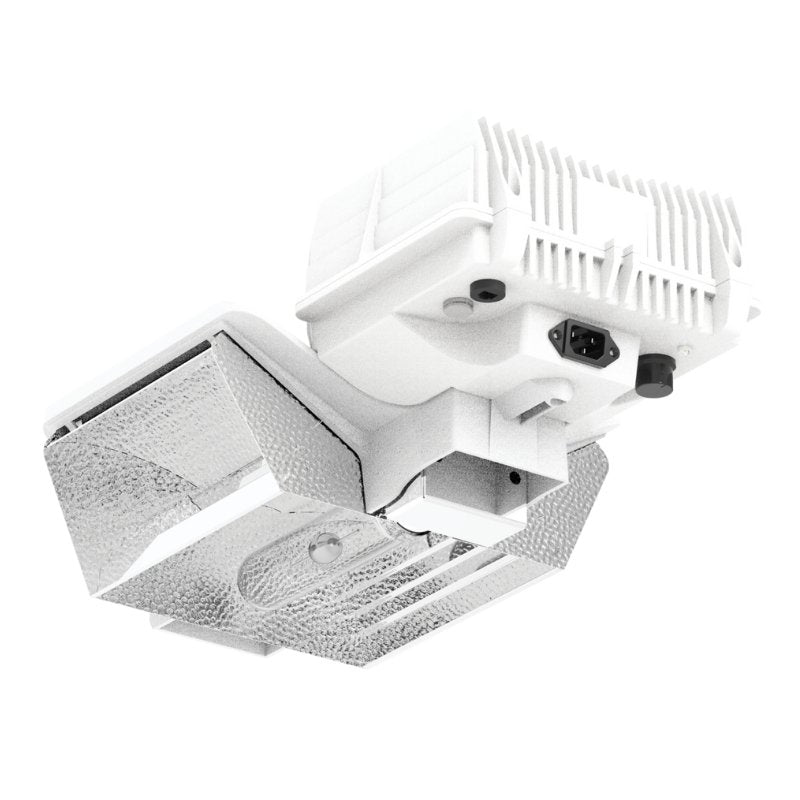

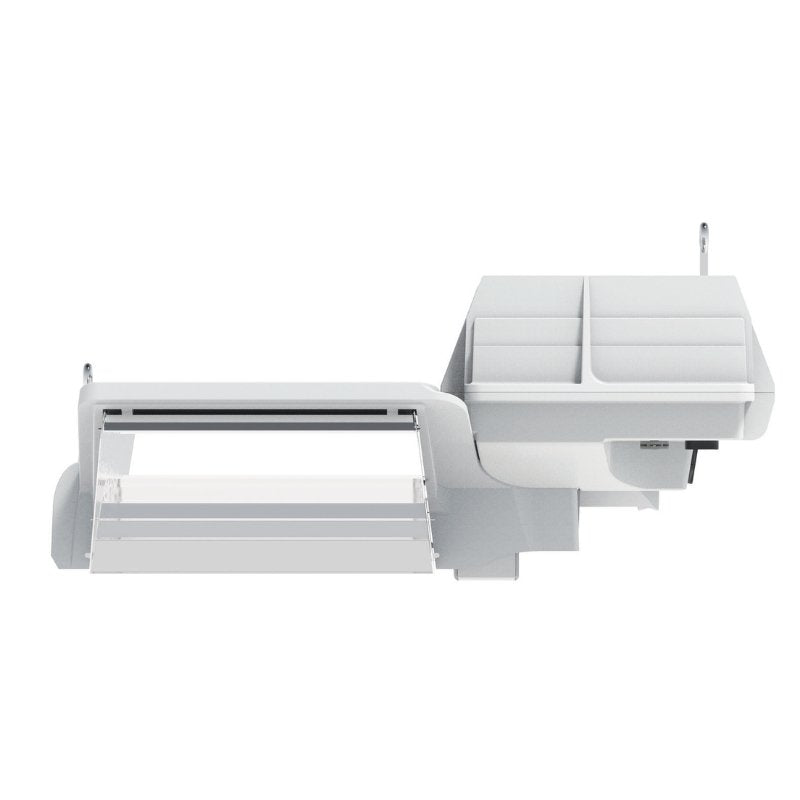

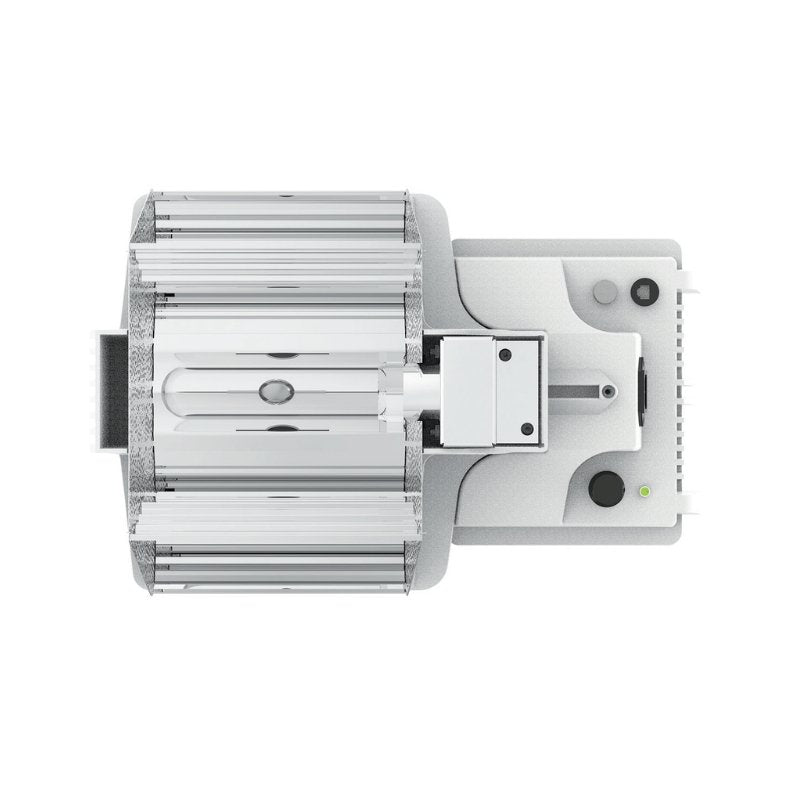

The Dutch Lighting Innovations (DLI) CRI-Series CMH Fixture 315W is a highly efficient indoor grow light that surpasses the performance of competitors. This proprietary engineered design has set a new standard for what is possible for indoor production.

The #FLOWERSONLY Reflector is manufactured to have the highest possible total reflectance at all wavelengths to deliver excellent PAR rendition. Efficiency and uniformity are the main focus in the design of the #FLOWERSONLY Reflector. The unique design and the high uniformity of light results in less hotspots on the canopy and a more even plant growth. The DLI CRI-Series are Plug & Play with the DLM-4 Zone Controller. A RJ12 Connection Kit is included with each fixture.

DLI CRI-Series CMH Fixture 315W Features:

• Extra low-profile housing - ideal for low ceilings

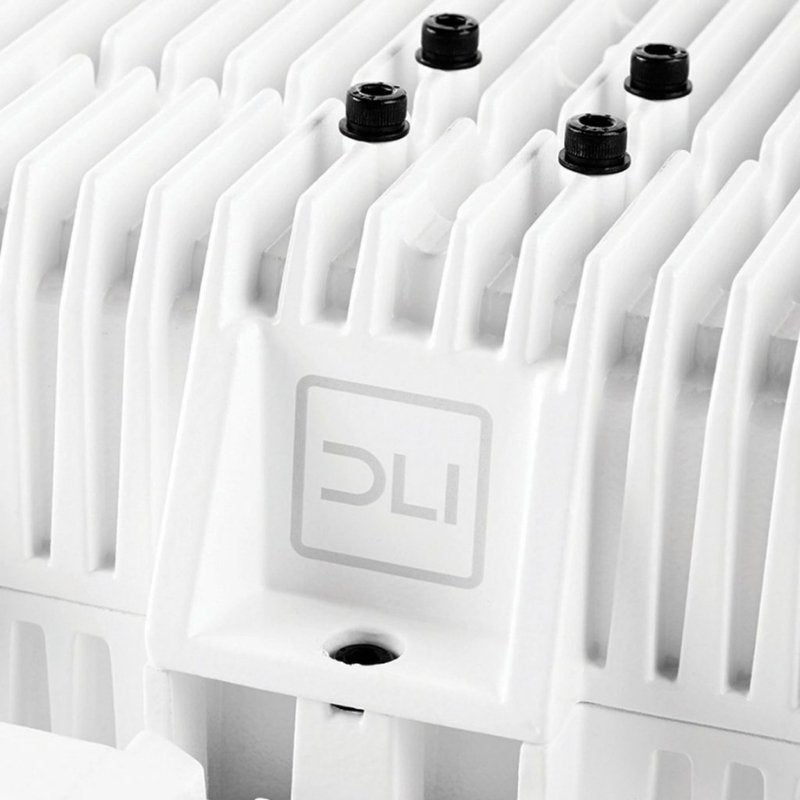

• Improved heatsink - increased driver efficiency
• LED indicator - status & error diagnostics
• IP65 controller connection - plug & play with DLM-series
• Gore-tex plug - ventilation plug
• Built in spirit level - achieve perfectly even light spread
• #FLOWERSONLY reflector - superior light spread & reflection

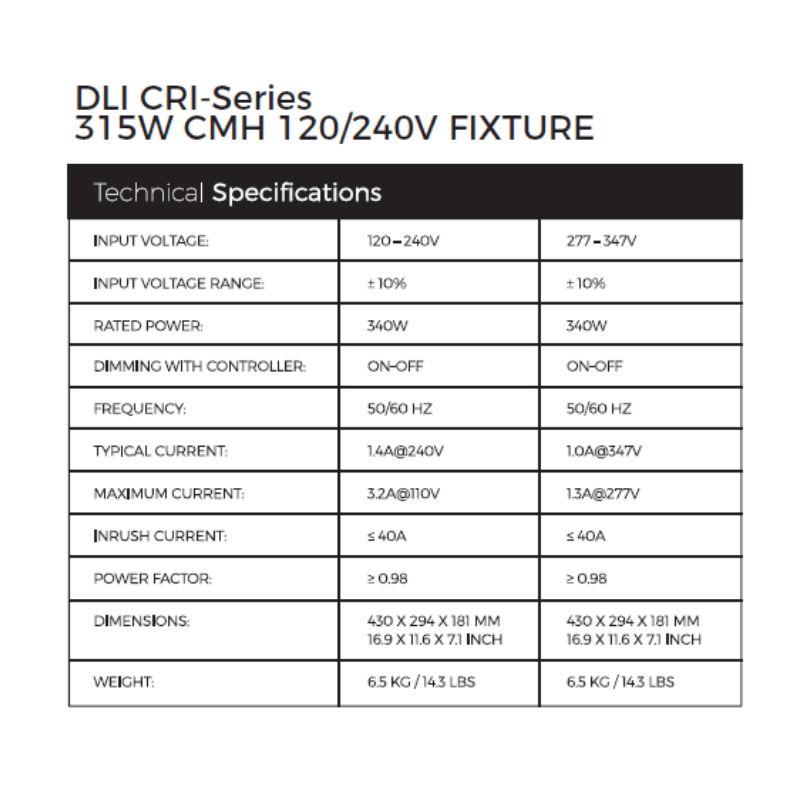

DLI CRI-Series CMH Fixture 315W Specifications:

• Dimensions: 430mm x 294mm x 181mm (16.9" x 11.6" x 7.1")
• Weight: 6.5 kg / 14.3 lbs
• Frequency: 50/60 Hz
• Typical current: 1.4A @ 240V
• Maximum current: 3.2A @ 110V
• Inrush current: ≤ 40A
• Power factor: ≥ 0.98
• Input voltage: 120 ~ 240V
• Input voltage range: ± 10%
• Rated power: 340W


How it works
The DLI reflectors are manufactured to have the highest possible total reflectance at all wavelengths from 400 to 700 nm giving excellent PAR rendition. The integrated hemispherical reflectance is over 95% with an absence of iridescence colours in the louvre.

The DLI reflectors are made from an electrochemically brightened high purity aluminium substrate coil, and start with an anodised base coat which gives a hard support to minimize abrasion damage. The material is then treated under vacuum with specially developed processes to maximise coating adhesion and is vacuum coated with a super pure reflection layer of 99.99% pure aluminium.

These reflection layers are overlaid with a dual layer oxide system tuned for maximum visible reflection enhancement. This serves to increase the overall reflectivity provided by the metallic layers and adds protection against damage.
